PE Insulated & PVC/LSZH Sheathed Installation Cables to DIN VDE 0816/0815 |
| J-2Y(St)Y…2X0.6 StIII Bd |
J-2Y(St)H…2X0.6 StIII Bd |
|
|
| |
| Applications |
|
| |
The installation cables are used for telephone, signaling and data transmission for permanent surface or concealed installation in dry and damp rooms and for outdoor applications. |
|
| Standards |
| |
• DIN VDE 0816/0815 |

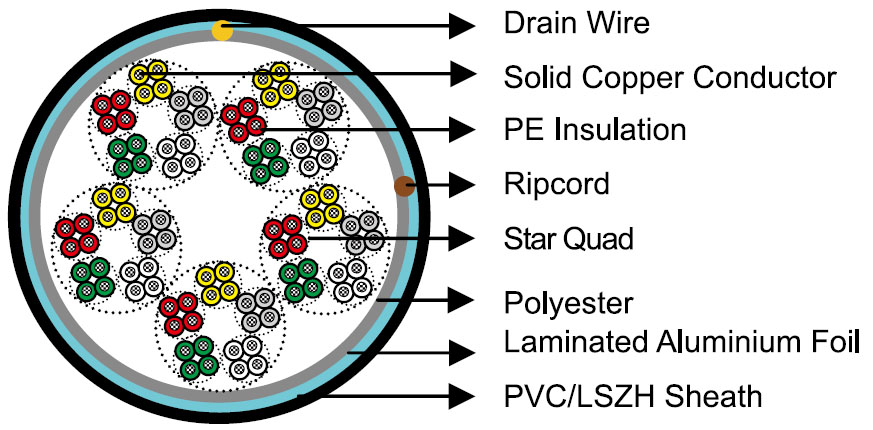

| Construction |
| |
Conductors: Solid annealed bare copper sized 0.6mm as per VDE 0295/IEC 60228 class 1. |
|
| |
Insulation: Solid polyethylene 2YI2 type as per VDE 0207-2. |
|
| |
Cabling Element: Star Quads. |
| |
Cable Core Assembly: Group of four wires is stranded into a star quad, the quads are assembled into units and the units form the core. |
| |
Core Wrapping: One or more non-hygroscopic polyester tapes are helically or longitudinally laid with an overlap prior to sheathing. |
| |
Screen: Laminated aluminium foil is fully enclosing the core with an overlap. |
| |
Sheath: PVC YM1 type to DIN VDE 0207 part 5. LSZH sheath can be offered as option. |
| |
Ripcord: Nylon ripcord may be placed parallel to the cores to facilitate sheath removal. |
|
| |
Drain Wire: Tinned drain wire may be applied longitudinally to provide continuity of the screen. |
|
| Type codes |
| |
| J- |
Installation Cable |
| 2Y |
Polyethylene (PE) |
| H |
Low Smoke & Zero Halogen |
| (St) |
Static Shield of aluminium tape |
| StIII |
Star quad in local cables |
| Bd |
Unit-type stranding |
|
| Electrical properties |
|
| |
| Nominal Conductor Diameter |
mm |
0.6 |
0.6 |
| VDE CODE |
|
J-2Y(St)Y |
J-2Y(St)H |
| Conductor Size |
mm2 |
0.283 |
0.283 |
| Maximum Conductor Resistance @20°C |
Ω/km |
63 |
63 |
| Maximum Loop Resistance @20°C |
Ω/km |
130 |
130 |
| Minimum Insulation Resistance @500V DC |
MΩ.km |
5000 |
5000 |
| Mutual Capacitance @0.8KHz (100% of all values) max |
nF/km |
52 |
52 |
| (95% of all values) max |
|
50 |
50 |
| Capacitance Unbalance @0.8KHz |
pF/300m |
|
|
| K1 100% of values max |
pF/300m |
800 |
800 |
| 98% of values max |
pF/300m |
400 |
400 |
| K9-12 100% of values max |
pF/300m |
300 |
300 |
| 98% of values max |
pF/300m |
100 |
100 |
| Maximum Loop Resistance @20°C |
Ω/km |
130 |
130 |
| Impedance (4 -16 Mhz) |
Ω |
100+/-15% |
100+/-15% |
| Maximum Average Attenuation @1MHz |
dB/km |
35 |
35 |
| Maximum Average Attenuation @4MHz |
dB/km |
55 |
55 |
| Maximum Average Attenuation @10MHz |
dB/km |
73 |
73 |
| Maximum Average Attenuation @16MHz |
dB/km |
86 |
86 |
| Maximum Average Attenuation @20MHz |
dB/km |
95 |
95 |
| Maximum Working Voltage Peak Value |
V |
225 |
225 |
| Insulation Material |
|
PE |
PE |
| Sheath Material |
|
PVC |
LSZH |
| Nominal Insulation Thickness |
mm |
0.25 |
0.25 |
| Nominal Insulated Conductor Diameter |
mm |
1.1 |
1.1 |
|
|
| Mechanical and thermal properties |
| |
Temperature range during operation (fixed state) : -30°C – +70°C |
| |
Temperature range during installation (mobile state) : -20°C – +50°C |
| |
Minimum bending radius : 10 x Overall Diameter |
| Color Code |
| |
| Quads |
 |

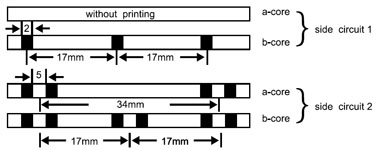

| The single core is identified by black ring markings: |
| Side Circuit 1 |
a-wire |
without marking |
| b-wire |
1 mark distance 17mm |
| Side Circuit 2 |
a-wire |
2 marks distance 34mm |
| b-wire |
2 marks distance 17mm |
| Subunits |
| Basic colours of the wire insulation of the 5 star quads of a basic unit: |
|
| |
Quad 1 |
Red |
|
| |
Quad 2 |
Green |
|
| |
Quad 3 |
Grey |
|
| |
Quad 4 |
Yellow |
|
| |
Quad 5 |
White |
|
| The tracer units are coded with a red helix, all other units by a white binder. |
|
| Dimensions and weight |
| |
VDE CODE: J-2Y(St)Y…x2x 0.6 StIII Bd |
| |
| Cable Code |
Number of
Pairs |
Nominal Insulation
Thickness
mm |
Nominal Sheath
Thickness
mm |
Nominal Overall
Diameter
mm |
Nominal Weight
kg/km |
| 0.6mm Conductor, 1.1mm Insulated Wire |
| TP815J-2Y(St)Y-StIII-Bd-2P06 |
2 |
0.25 |
1.0 |
5.7 |
46 |
| TP815J-2Y(St)Y-StIII-Bd-4P06 |
4 |
0.25 |
1.0 |
6.9 |
66 |
| TP815J-2Y(St)Y-StIII-Bd-6P06 |
6 |
0.25 |
1.0 |
7.8 |
85 |
| TP815J-2Y(St)Y-StIII-Bd-10P06 |
10 |
0.25 |
1.0 |
9.3 |
122 |
| TP815J-2Y(St)Y-StIII-Bd-20P06 |
20 |
0.25 |
1.0 |
12.1 |
204 |
| TP815J-2Y(St)Y-StIII-Bd-30P06 |
30 |
0.25 |
1.2 |
14.6 |
298 |
| TP815J-2Y(St)Y-StIII-Bd-40P06 |
40 |
0.25 |
1.2 |
16.3 |
375 |
| TP815J-2Y(St)Y-StIII-Bd-50P06 |
50 |
0.25 |
1.4 |
17.9 |
451 |
| TP815J-2Y(St)Y-StIII-Bd-60P06 |
60 |
0.25 |
1.4 |
18.5 |
520 |
| TP815J-2Y(St)Y-StIII-Bd-80P06 |
80 |
0.25 |
1.4 |
19.7 |
660 |
| TP815J-2Y(St)Y-StIII-Bd-100P06 |
100 |
0.25 |
1.6 |
20.9 |
802 |
|
|
| |
VDE CODE: J-2Y(St)H…x2x 0.6 StIII Bd |
| |
| Cable Code |
Number of
Pairs |
Nominal Insulation
Thickness
mm |
Nominal Sheath
Thickness
mm |
Nominal Overall
Diameter
mm |
Nominal Weight
kg/km |
| 0.6mm Conductor, 1.1mm Insulated Wire |
| TP815J-2Y(St)H-StIII-Bd-2P06 |
2 |
0.25 |
1.0 |
5.7 |
46 |
| TP815J-2Y(St)H-StIII-Bd-4P06 |
4 |
0.25 |
1.0 |
6.9 |
66 |
| TP815J-2Y(St)H-StIII-Bd-6P06 |
6 |
0.25 |
1.0 |
7.8 |
85 |
| TP815J-2Y(St)H-StIII-Bd-10P06 |
10 |
0.25 |
1.0 |
9.3 |
122 |
| TP815J-2Y(St)H-StIII-Bd-20P06 |
20 |
0.25 |
1.0 |
12.1 |
204 |
| TP815J-2Y(St)H-StIII-Bd-30P06 |
30 |
0.25 |
1.2 |
14.6 |
298 |
| TP815J-2Y(St)H-StIII-Bd-40P06 |
40 |
0.25 |
1.2 |
16.3 |
375 |
| TP815J-2Y(St)H-StIII-Bd-50P06 |
50 |
0.25 |
1.4 |
17.9 |
451 |
| TP815J-2Y(St)H-StIII-Bd-60P06 |
60 |
0.25 |
1.4 |
18.5 |
520 |
| TP815J-2Y(St)H-StIII-Bd-80P06 |
80 |
0.25 |
1.4 |
19.7 |
660 |
| TP815J-2Y(St)H-StIII-Bd-100P06 |
100 |
0.25 |
1.6 |
20.9 |
802 |
|
| |
|
