PE Insulated Category 3 UTP/FTP Cables |
|
| |
| Applications |
|
| |
The cables are designed for medium frequency data or telephone systems, suitable for indoor or outdoor insulations. |
| Standards |
| |
| • TIA/EIA-568B |
| • IEC 61156-4 |
| • UL-444 |
| • ANSI/ICEA S-80-576 |
|

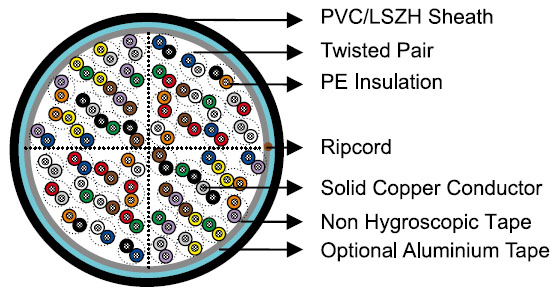

| Construction |
|
| |
Conductors: Solid annealed bare copper sized 0.5mm (24 AWG) as per ASTM-B3/class 1 of IEC 60228. |
|
| |
Insulation: Solid polyethylene as per ASTM D 1248/IEC 60708. |
| |
Twisted Pairs: Insulated conductors are twisted into pairs with varying lay length to minimize crosstalk. |
| |
Cable Core Assembly: The 50-pair cable is composed of 4 units having 12 or 13 pairs each. All other cables are composed of 25-pair units. Units are identified by colour coded binders. |
| |
Core Wrapping: Non-hygroscopic dielectric tape fully enclosing the core with an overlap. |
| |
Screen (optional): An optional Aluminium/Polyester tape placed in contact with solid copper drain wire may be provided as an option. |
| |
Sheath: PVC or LSZH. |
|
| |
Ripcord: Nylon ripcord may be placed parallel to the cores to facilitate sheath removal. |
|
| |
| Electrical properties |
|
| |
| Nominal Conductor Diameter |
mm |
0.5 |
| Maximum DC Resistance |
Ω/100m |
9.38 |
| Maximum Resistance Unbalance |
% |
5 |
| Maximum Capacitance Unbalance pair-to-ground @1KHz |
pF/100m |
330 |
| Minimum Worst Pair Structural Return Loss (SRL): |
|
|
| Up to 10 MHz |
dB |
12 |
| Between 10 and 16 MHz |
dB |
10 |
| Impedance @1-16 MHz |
Ω |
85 - 115 |
| Maximum Attenuation at 20°C |
|
|
| @64KHz |
dB/100m |
0.9 |
| @256KHz |
dB/100m |
1.3 |
| @512KHz |
dB/100m |
1.8 |
| @772KHz |
dB/100m |
2.2 |
| @1MHz |
dB/100m |
2.6 |
| @4MHz |
dB/100m |
5.6 |
| @8MHz |
dB/100m |
8.5 |
| @10MHz |
dB/100m |
9.7 |
| @16MHz |
dB/100m |
13.1 |
| Minimum Worst pair-to-pair NEXT Loss |
|
|
| @772KHz |
dB |
43 |
| @1MHz |
dB |
41 |
| @4MHz |
dB |
32 |
| @8MHz |
dB |
28 |
| @10MHz |
dB |
26 |
| @16MHz |
dB |
23 |
| Minimum Relative Velocity of Propagation @10MHz |
dB |
0.585 |
|
|
| Mechanical and thermal properties |
| |
Temperature range during operation (fixed state) : -30°C – +70°C |
| |
Temperature range during installation (mobile state) : -20°C – +50°C |
| |
Minimum bending radius : 10 x Overall Diameter (unarmoured cables);15 x Overall Diameter (armoured cables). |
| Colour Code |
| |
Standard Colour Code is per TIA/EIA 568B or ICEA S-80-576 as given in Colour Code Chart. |
| Dimensions and weight |
| |
PE INSULATED CATEGORY 3 UTP CABLES |
| |
| Cable Code |
Number of
Pairs |
Nominal Sheath
Thickness
mm |
Nominal Overall
Diameter
mm |
Nominal Weight
kg/km |
| 0.5mm Conductor, 0.9mm Insulated Wire, UTP, PVC Sheathed, Indoor |
| TP568-2YY-10P05-UTPC3 |
10 |
0.9 |
9.5 |
77 |
| TP568-2YY-25P05-UTPC3 |
25 |
0.9 |
12.5 |
155 |
| TP568-2YY-50P05-UTPC3 |
50 |
1.0 |
17.0 |
260 |
| TP568-2YY-100P05-UTPC3 |
100 |
1.1 |
21.5 |
530 |
| TP568-2YY-200P05-UTPC3 |
200 |
1.2 |
29.5 |
1100 |
| TP568-2YY-300P05-UTPC3 |
300 |
1.3 |
33.5 |
1550 |
| 0.5mm Conductor, 0.9mm Insulated Wire, UTP, LSZH Sheathed, Indoor & Outdoor |
| TP568-2YH-10P05-UTPC3 |
10 |
0.9 |
10.0 |
80 |
| TP568-2YH-25P05-UTPC3 |
25 |
0.9 |
14.0 |
150 |
| TP568-2YH-50P05-UTPC3 |
50 |
1.1 |
16.5 |
280 |
| TP568-2YH-100P05-UTPC3 |
100 |
1.4 |
21.5 |
530 |
| TP568-2YH-200P05-UTPC3 |
200 |
1.7 |
30.0 |
900 |
| TP568-2YH-300P05-UTPC3 |
300 |
1.7 |
36.0 |
1300 |
| 0.5mm Conductor, 0.9mm Insulated Wire, UTP, PE Sheathed, Outdoor |
| TP568-2Y2Y-10P05-UTPC3 |
10 |
0.9 |
9.5 |
80 |
| TP568-2Y2Y-25P05-UTPC3 |
25 |
0.9 |
13.0 |
150 |
| TP568-2Y2Y-50P05-UTPC3 |
50 |
1.0 |
16.0 |
280 |
| TP568-2Y2Y-100P05-UTPC3 |
100 |
1.1 |
21.5 |
550 |
| TP568-2Y2Y-200P05-UTPC3 |
200 |
1.2 |
28.5 |
1050 |
| TP568-2Y2Y-300P05-UTPC3 |
300 |
1.3 |
34.5 |
1550 |
|
| |
|
| |
PE INSULATED CATEGORY 3 FTP CABLES |
| |
| Cable Code |
Number of
Pairs |
Nominal Sheath
Thickness
mm |
Nominal Overall
Diameter
mm |
Nominal Weight
kg/km |
| 0.5mm Conductor, 0.9mm Insulated Wire, FTP, PVC Sheathed, Indoor |
| TP568-2Y(St)Y-10P05-FTPC3 |
10 |
0.9 |
10.0 |
85 |
| TP568-2Y(St)Y-25P05-FTPC3 |
25 |
0.9 |
13.5 |
170 |
| TP568-2Y(St)Y-50P05-FTPC3 |
50 |
1.0 |
17.0 |
300 |
| TP568-2Y(St)Y-100P05-FTPC3 |
100 |
1.1 |
22.0 |
570 |
| TP568-2Y(St)Y-200P05-FTPC3 |
200 |
1.2 |
30.0 |
1120 |
| TP568-2Y(St)Y-300P05-FTPC3 |
300 |
1.3 |
36.6 |
1630 |
0.5mm Conductor, 0.9mm Insulated Wire, FTP, LSZH Sheathed, Indoor& Outdoor |
| TP568-2Y(St)H-25P05-FTPC3 |
25 |
0.9 |
14.0 |
170 |
| TP568-2Y(St)H-50P05-FTPC3 |
50 |
1.0 |
17.5 |
300 |
| TP568-2Y(St)H-100P05-FTPC3 |
100 |
1.2 |
23.0 |
580 |
| TP568-2Y(St)H-200P05-FTPC3 |
200 |
1.6 |
32.0 |
1120 |
| TP568-2Y(St)H-300P05-FTPC3 |
300 |
1.6 |
35.0 |
1320 |
0.5mm Conductor, 0.9mm Insulated Wire, FTP, PE Sheathed, Outdoor |
| TP568-2Y(St)2Y-10P05-FTPC3 |
10 |
0.9 |
11.0 |
85 |
| TP568-2Y(St)2Y-25P05-FTPC3 |
25 |
0.9 |
13.5 |
170 |
| TP568-2Y(St)2Y-50P05-FTPC3 |
50 |
1.0 |
16.5 |
300 |
| TP568-2Y(St)2Y-100P05-FTPC3 |
100 |
1.1 |
22.6 |
570 |
| TP568-2Y(St)2Y-200P05-FTPC3 |
200 |
1.2 |
31.0 |
1070 |
| TP568-2Y(St)2Y-300P05-FTPC3 |
300 |
1.3 |
35.5 |
1570 |
|
| |
|
