ADSL Connecting Cables |
|
| |
| Applications |
|
| |
The cables are designed for ADSL transmission system. The cables are characterized by guaranteed data speeds up to 10MHz. The cables have a small cable diameter with an easily removable sheath. |
| Standards |
| |
| • IEC 61156-1 Part 1 |
| • ANSI/ICEA S-80-576 |
|

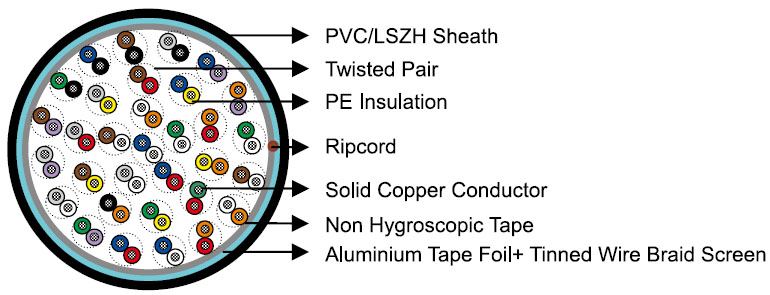

| Construction |
|
| |
Conductors: Solid annealed bare copper sized 0.4mm as per ASTM B-3/IEC 60228 Class 1. |
|
| |
Insulation: Solid polyethylene as per ASTM D 1248/IEC 60708. |
| |
Twisted Pairs: Insulated conductors are twisted into pairs with varying lays to minimize crosstalk. |
| |
Cable Core Assembly: The pairs are cabled in concentric layer to form the cable core. |
| |
Core Wrapping: One or more non-hygroscopic polyester tapes are helically or longitudinally laid with an overlap. |
| |
Screen: An aluminium polyester foil is applied in close contact with tinned copper braid screen. |
| |
Sheath: PVC or LSZH compound. |
|
| |
Ripcord: Ripcord may be placed to facilitate sheath removal. |
|
| |
| Electrical properties |
|
| |
| Number of Pairs |
|
24 |
32 |
64 |
72 |
96 |
128 |
| Maximum Conductor Resistance @20°C |
Ω/km |
143 |
143 |
143 |
143 |
143 |
143 |
| Minimum Insulation Resistance @500V DC |
MΩ.km |
1000 |
1000 |
1000 |
1000 |
1000 |
1000 |
| Maximum Mutual Capacitance @800Hz |
nF/km |
80 |
80 |
80 |
80 |
80 |
80 |
| Maximum Capacitance Unbalance pair-to-pair |
pF/500m |
250 |
250 |
250 |
250 |
250 |
250 |
| Impedance |
Ω |
120 |
120 |
105 |
105 |
100 |
105 |
| Maximum Average Attenuation @1MHz |
dB/km |
32 |
32 |
32 |
32 |
32 |
32 |
| Maximum Average Attenuation @10MHz |
dB/km |
110 |
110 |
110 |
110 |
110 |
110 |
| Minimum NEXT pair-to-pair @1MHz |
dB |
55 |
55 |
55 |
55 |
55 |
55 |
| Minimum NEXT pair-to-pair @10MHz |
dB |
40 |
40 |
40 |
40 |
40 |
40 |
| Dielectric Strength 1min |
V DC |
1500 |
1500 |
1500 |
1500 |
1500 |
1500 |
|
|
| Mechanical and thermal properties |
| |
Temperature range during operation (fixed state) : -30°C – +70°C |
| |
Temperature range during installation (mobile state) : -20°C – +50°C |
| |
Minimum bending radius : 10 x Overall Diameter. |
| Colour Code |
| |
Standard colour code is per ANSI/ICEA S-80-576 given in Colour Code Chart. |
| Dimensions and weight |
| |
| Cable Code |
Number of
Pairs |
Nominal Insulation
Thickness
mm |
Nominal Sheath
Thickness
mm |
Nominal Overall
Diameter
mm |
Nominal Weight
kg/km |
| TP576-2Y(St)Y-24P04-ADSL |
24 / 3X4Q |
0.2 |
0.9 |
11.0 |
139 |
| TP576-2Y(St)Y-32P04-ADSL |
32 / 4X4Q |
0.2 |
0.9 |
12.0 |
180 |
| TP576-2Y(St)Y-64P04-ADSL |
64 |
0.15 |
1.0 |
15.0 |
300 |
| TP576-2Y(St)Y-72P04-ADSL |
72 |
0.15 |
1.0 |
16.0 |
330 |
| TP576-2Y(St)Y-96P04-ADSL |
96 |
0.15 |
1.1 |
19.5 |
450 |
| TP576-2Y(St)Y-128P04-ADSL |
128 |
0.15 |
1.2 |
20.0 |
528 |
|
| |
|
