400Hz Airport Cables 7-core

Applications

These cables are designed for 400 Hz systems for power supply of aircraft, computer systems and radar stations, suitable for laying in earth, in water, outdoors, indoors and in cable ducts.

Standards

  • VDE 0271

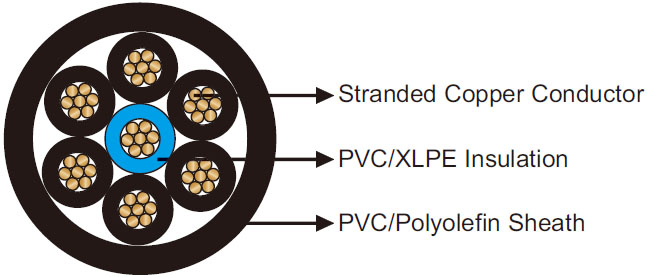

Construction

Airport Cable
Conductor Stranded bare copper conductor, lass 2 or 5 to VDE 0295/IEC 60228.
Insulation PVC/XLPE.
Outer Sheath PVC. Polyolefin can be offered upon request.

Technical Data

Rated Voltage Uo/U (Um) 600/1000V
Operating Temperatures -20℃~+70℃
Minimum Bending Radius static: 6×OD; dynamic: 12×OD
Impacted Resistant Yes
Weather Resistant Yes

Dimensions and Weight

Construction Nominal Diameter of Single Core Nominal Overall Diameter Nominal Weight
No. ×mm^2 mm mm kg/km
7×25 9.6 35.0 2800
7×35 10.6 39.0 3500
7×50 11.8 42.9 4000
7×70 13.6 49.2 5440
