FAA L-824 Type C Shielded 5kV

Applications

These cables are used for interconnecting the transformers and the current regulator of airfield lighting systems in series circuits, suitable for fixed applications such as taxiways, runways, touchdown zones, land and hold short lighting systems, can be installed in conduit, duct, aerial and direct burial.

Standards

  • FAA AC 150 / 5345-7E
  • FAA L-824 Type C
  • ICEA S-93-639 / NEMA WC74

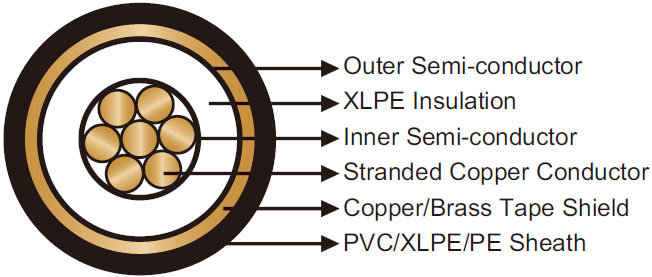

Construction

Airport Cable
Conductor Stranded bare or tinned copper.
Inner Semi-Conductor Extruded semi-conducting compound.
Insulation XLPE.
Outer Semi-Conductor Semi conducting tape or extruded.
Shield Copper or brass tape(s). Tinned copper wire braid can be offered upon request.
Sheath PVC. PE/XLPE can be offered upon request.

Technical Data

Rated Voltage Uo/U (Um) 5kV
Maximum Conductor Temperature 90℃
Short Circuit Temperature 250℃
Operating Temperatures -40℃~+90℃
Minimum Bending Radius static: 10×OD; dynamic: 20×OD
Impacted Resistant Yes
Weather Resistant Yes

Dimensions and Weight

Construction No. of Strand Nominal Insulation Thickness Nominal Overall Diameter Nominal Weight
No. × mm^2/ AWG - mm inches mm inches kg/km lbs/kft
1×6mm^2 7/19 2.3 0.09 11.0 0.43 180 121
1×8 7/19 2.3 0.09 14.3 0.565 298 200
1×6 7/19 2.3 0.09 15.4 0.605 366 246
1×4 7/19 2.3 0.09 17.0 0.668 513 345
