AEXF

Applications

This XLPE insulated single-core cable is used in low voltage circuits in automobiles(vehicles and motorcycles)

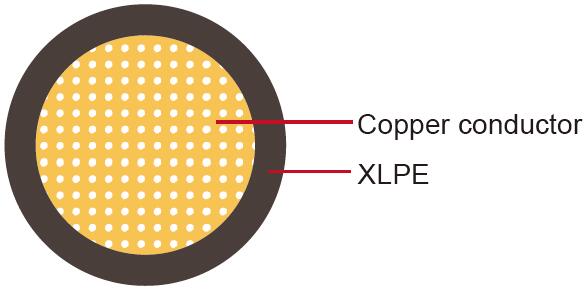

Construction

AEXF
Conductor Annealed standed copper
Insulation Cross-linked Polyethylene (XLPE) or Polyvinyl Chloride
Standard Compliance JASO D611

Technical Parameters

Operating temperature –40 °C to +120 °C
Conductor Insulation Cable
Nominal Cross-section No. and Dia. of Wires Diameter max. Electrical Resistance at 20°C max. Thickness Wall nom. Overall Diameter min. Overall Diameter max. Weight approx.
mm2 No./mm mm mΩ/m mm mm mm kg/km
1x0.30 12/0.18 0.7 61.1 0.5 1.7 1.8 5.7
1x0.50 20/0.18 1.0 36.7 0.5 1.9 2.0 8.0
1x0.85 34/0.18 1.2 21.6 0.5 2.2 2.3 12.0
1x1.25 50/0.18 1.5 14.6 0.6 2.7 2.8 17.5
1x2.00 79/0.18 1.9 8.68 0.6 3.1 3.2 24.9
1x3.00 119/0.18 2.3 6.15 0.7 3.7 3.8 37
1x5.00 207/0.18 3.0 3.94 0.8 4.6 4.8 61.5
1x8.00 315/0.18 3.7 2.32 0.8 5.3 5.5 88.5
1x10.0 399/0.18 4.1 1.76 0.9 5.9 6.1 113
1x15.0 588/0.18 5.0 1.20 1.1 7.2 7.5 166
1x20.0 247/0.32 6.3 0.92 1.1 8.5 8.8 216

*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
