CAVUS
Applications
This PVC insulated single-core cable is used for automotive wiring.

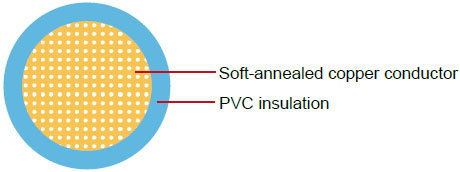

Construction
Conductor | Cu-ETP1 according to JIS C 3102 |
---|---|
Insulation | PVC |
Standard Compliance | JASO D 611-94 |
Technical Parameters
Operating temperature: –40 °C to +80 °C
Conductor | Insulation | Cable | |||||
---|---|---|---|---|---|---|---|
Nominal Cross-section | No. and Dia. of Wires | Diameter max. | Electrical Resistance at 20 °C max. | Thickness Wall nom. | Overall Diameter min. | Overall Diameter max. | Weight approx. |
mm2 | No./mm | mm | mΩ/m | mm | mm | mm | kg/km |
1 x0.30 | 7/0.26 | 0.70 | 50.20 | 0.20 | 1.10 | 1.20 | 4 |
1 x0.50 | 7/0.32 | 0.90 | 32.70 | 0.20 | 1.30 | 1.40 | 6 |
1 x0.85 | 11/0.32 | 1.10 | 20.80 | 0.20 | 1.50 | 1.60 | 9 |
1 x1.25 | 16/0.32 | 1.40 | 14.30 | 0.20 | 1.80 | 1.90 | 13 |
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
