FLR13Y11Y
Applications
This TPE-E insulated,TPE-U sheathed low tension multi-cores cable is used for ABS systems,it has excellent abrasion resistance and better resistance to bending fatigue.

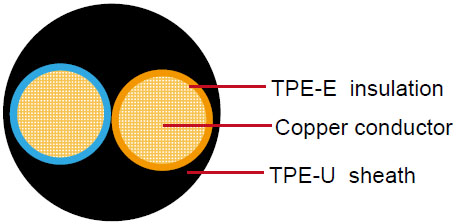

Construction
Conductor | Cu-ETP1 according to DIN EN13602 |
---|---|
Insulation | Thermoplasticity polyester (TPE-E) |
Sheath | Thermoplasticity polyurethane (TPU) |
Standard Compliance | ISO 6722 |
Technical Parameters
Operating temperature: –40 °C to +125 °C
Conductor | Insulation | Cable | |||||||
---|---|---|---|---|---|---|---|---|---|
Nominal Cross-section | No. andDia. of Wires | Diameter max. | Electrical Resistance at 20°Cmax. | Thickness Wall nom. | Diameter of Core | Sheath Thickness | Overall Diameter min. | Overall Diameter max. | Weight approx. |
mm2 | No./mm | mm | mΩ/m | mm | mm | mm | mm | mm | kg/km |
2 x 0.50 | 28/0.16 | 1.00 | 37.10 | 0.20 | 1.40 | 0.60 | 3.85 | 4.15 | 22 |
2 x 0.50 | 28/0.16 | 1.00 | 37.10 | 0.20 | 1.40 | 0.85 | 4.35 | 4.65 | 27 |
2 x 0.50 | 28/0.16 | 1.00 | 37.10 | 0.35 | 1.70 | 0.80 | 4.80 | 5.20 | 32 |
2 x 0.60 | 80/0.11 | 1.20 | 24.70 | 0.20 | 1.45 | 0.80 | 4.35 | 4.65 | 28 |
2 x 0.75 | 42/0.16 | 1.20 | 27.10 | 0.30 | 1.80 | 1.30 | 6.00 | 6.40 | 48 |
2 x 0.75 | 96/0.10 | 1.20 | 27.10 | 0.30 | 1.80 | 1.30 | 6.00 | 6.40 | 62 |
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
