SGT
Applications
This PVC insulated single-core cable is used for automotive starters or battery grounds.

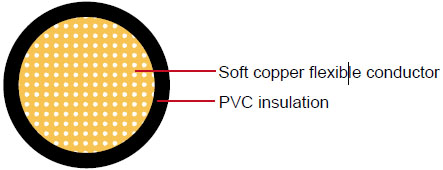

Construction
| Conductor |
Soft copper flexible conductor |
| Insulation |
PVC |
| Standard Compliance |
SAE J1127 |
Technical Parameters
Operating temperature: –40 °C to +80 °C
| Conductor |
Insulation |
Cable |
| Size |
Nominal Cross-section |
No. and Dia. of Wires |
Diameter max. |
Thickness Wallnom. |
Overall Diameter max. |
Weight approx. |
| AWG |
mm2 |
No./mm |
mm |
mm |
mm |
kg/km |
| 6 |
1 x 13.48 |
266/0.26 |
4.12 |
1.52 |
6.58 |
152 |
| 4 |
1 x 21.28 |
420/0.26 |
6.72 |
1.65 |
9.40 |
243 |
| 2 |
1 x 33.70 |
665/0.26 |
8.58 |
1.65 |
11.26 |
368 |
| 1 |
1 x 42.36 |
836/0.26 |
9.77 |
1.65 |
12.45 |
454 |
| 1/0 |
1 x 53.91 |
1064/0.26 |
11.10 |
1.65 |
13.78 |
568 |
| 2/0 |
1 x 67.04 |
1323/0.26 |
12.47 |
1.65 |
15.15 |
697 |
| 3/0 |
1 x 84.42 |
1666/0.26 |
14.10 |
1.98 |
17.30 |
886 |
| 4/0 |
1 x 106.76 |
2107/0.26 |
15.97 |
1.98 |
19.17 |
1105 |
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
