Multicore Overall Foil & Braid Screened Cables - Belden Equivalent 9791
Applications
These multicore overall screened cables have individually insulated cores laid up in a Foil & Braid screen. These cables are suitable for RS-232 and RS-423 applications.

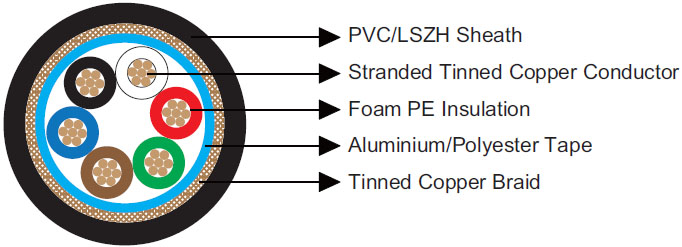

Construction
| Conductor |
Tinned copper wire. |
| Insulation |
Foam PE. |
| Overall Screen1 |
Aluminium/Polyester tape. |
| Overall Screen2 |
Tinned copper braid, 65% coverage. |
| Sheath |
PVC (V type)/LSZH (H type). |
| Insulation Colour |
Black, White, Red, Green, Brown, Blue. |
Electrical & Mechanical Characteristics
| AWG |
|
28 |
| Conductor Construction |
|
7x0.127 |
| UL Style |
|
2919 |
| Maximum Conductor Resistance |
Ω/km |
148.6 |
| Voltage Rating |
V |
30 |
| Nominal Capacitance Conductor to Conductor |
pF/m |
39 |
| Nominal Capacitance Conductor to Screen |
pF/m |
72 |
| Bending Radius |
|
10xOverall Diameter |
| Operating Temperature |
℃ |
-30~80 |
Dimensions
| Ordering Code |
No. of Cores |
Insulation Thickness |
Sheath Thickness |
Overall Diameter |
| |
|
mm |
mm |
mm |
| BE119791V |
6 |
0.4 |
0.6 |
5.7 |
| BE119791H |
6 |
0.4 |
0.6 |
5.7 |
