Multicore Overall Screened Cables - Belden Equivalent 8618
Applications
These multicore overall screened cables have individually insulated cores laid up in an aluminum/polyester tape with a tinned copper drain wire. These cables are suitable for used as audio, control and instrumentation cables.
Construction
| Conductor |
Tinned copper wire. |
| Insulation |
PE. |

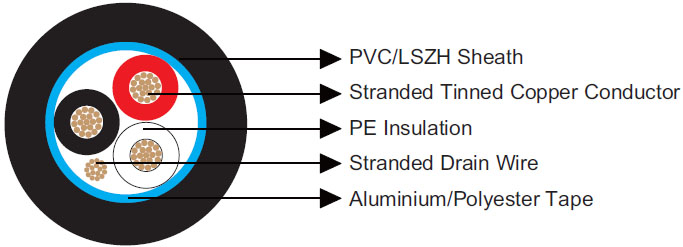

| Overall Screen |
Aluminium/Polyester tape. |
| Drain Wire |
Tinned copper wire. |
| Sheath |
PVC (V type)/LSZH (H type). |
| Insulation Colour |
Black, Red, Clear. |
Electrical & Mechanical Characteristics
| AWG |
|
16 |
| Conductor Construction |
|
19x0.287 |
| UL Style |
|
20253 |
| Maximum Conductor Resistance |
Ω/km |
15.8 |
| Voltage Rating |
V |
600 |
| Nominal Capacitance Conductor to Conductor |
pF/m |
85 |
| Nominal Capacitance Conductor to Screen |
pF/m |
164 |
| Bending Radius |
|
10xOverall Diameter |
| Operating Temperature |
℃ |
-20~60 |
Dimensions
| Ordering Code |
No. of Cores |
Insulation Thickness |
Sheath Thickness |
Overall Diameter |
| |
|
mm |
mm |
mm |
| BE118618V |
3 |
0.79 |
0.79 |
8.3 |
| BE118618H |
3 |
0.79 |
0.79 |
8.3 |
