Multicore Overall Screened Cables - Belden Equivalent 9260
Applications
These multicore overall screened cables have individually insulated cores laid up in a tinned copper braid screen, suitable for used as control cables.

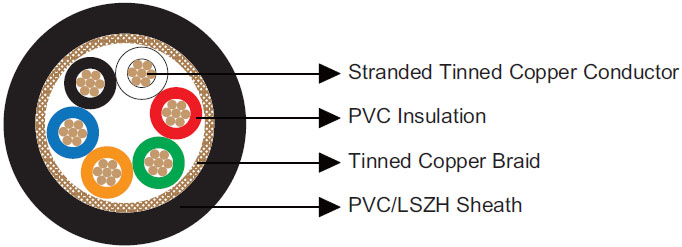

Construction
Conductor |
Tinned copper wire. |
Insulation |
PVC. |
Overall Screen |
Tinned copper braid, 85% coverage. |
Sheath |
PVC (V type)/LSZH (H type). |
Insulation Colour |
Black, White, Red, Green, Orange, Blue. |
Electrical & Mechanical Characteristics
AWG |
|
20 |
Conductor Construction |
|
7x0.32 |
UL Style |
|
2464 |
Maximum Conductor Resistance |
Ω/km |
34.1 |
Voltage Rating |
V |
300 |
Nominal Capacitance Conductor to Conductor |
pF/m |
85 |
Nominal Capacitance Conductor to Screen |
pF/m |
164 |
Bending Radius |
|
10xOverall Diameter |
Operating Temperature |
℃ |
-20~80 |
Dimensions
Ordering Code |
No. of Cores |
Insulation Thickness |
Sheath Thickness |
Overall Diameter |
|
|
mm |
mm |
mm |
BE119260V |
6 |
0.41 |
0.81 |
7.8 |
BE119260H |
6 |
0.41 |
0.81 |
7.8 |
