Multicore Overall Screened Cables - Belden Equivalent 9261
Applications
These multicore overall screened cables have individually insulated cores laid up in a tinned copper braid screen, suitable for used as control cables.

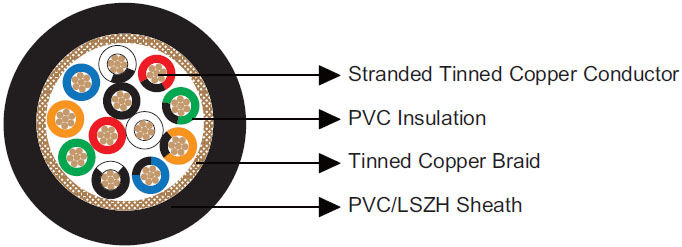

Construction
| Conductor |
Tinned copper wire. |
| Insulation |
PVC. |
| Overall Screen |
Tinned copper braid, 85% coverage. |
| Sheath |
PVC (V type)/LSZH (H type). |
| Insulation Colour |
Black, White, Red, Green, Orange, Blue, White/Black, Red/Black, Green/Black, Orange/Black, Blue/Black, Black/White. |
Electrical & Mechanical Characteristics
| AWG |
|
20 |
| Conductor Construction |
|
7x0.32 |
| UL Style |
|
2464 |
| Maximum Conductor Resistance |
Ω/km |
34.1 |
| Voltage Rating |
V |
300 |
| Nominal Capacitance Conductor to Conductor |
pF/m |
85 |
| Nominal Capacitance Conductor to Screen |
pF/m |
187 |
| Bending Radius |
|
10xOverall Diameter |
| Operating Temperature |
℃ |
-20~80 |
Dimensions
| Ordering Code |
No. of Cores |
Insulation Thickness |
Sheath Thickness |
Overall Diameter |
| |
|
mm |
mm |
mm |
| BE119261V |
12 |
0.41 |
1.02 |
10.1 |
| BE119261H |
12 |
0.41 |
1.02 |
10.1 |
