Multicore Overall Screened Cables - Belden Equivalent 9546

Applications

These multicore overall screened cables have individually insulated cores laid up in an aluminum/polyester tape with a tinned copper drain wire. These cables are suitable for RS232 applications, used as audio, control and instrumentation cables.

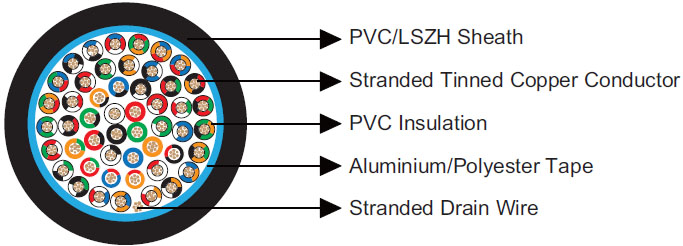

Construction

Belden Equivalent 9546
Conductor Tinned copper wire.
Insulation PVC.
Overall Screen Aluminium/Polyester tape.
Drain Wire Stranded tinned copper, 7x0.20.
Sheath PVC (V type)/LSZH (H type).
Insulation Colour Black, White, Red, Green, Orange, Blue, White/Black, Red/Black, Green/Black, Orange/Black, Blue/Black, Black/White, Red/White, Green/White, Blue/White, Black/Red, White/Red, Orange/Red, Blue/Red, Red/Green, Orange/Green, Black/White/Red, White/Black/Red, Red/Black/White, Green/Black/White, Orange/Black/White, Blue/Black/White, Black/Red/Green, White/Red/Green, Red/Black/Green, Green/Black/Orange, Orange/Black/Green, Blue/White/Orange, Black/White/Orange, White/Red/Orange, Orange/White/Blue, White/Red/Blue, Black/White/Green, White/Black/Green, Red/White/Green, Green/White/Blue, Orange/Red/Green, Blue/Red/Green, Black/White/Blue, White/Black/Blue, Red/White/Blue, Green/Orange/Red, Orange/Red/Blue, Blue/Red/Orange, Black/Orange/Red.

Electrical & Mechanical Characteristics

AWG   24
Conductor Construction   7x0.20
UL Style   2464
Maximum Conductor Resistance Ω/km 85
Voltage Rating V 300
Nominal Capacitance Conductor to Conductor pF/m 98
Nominal Capacitance Conductor to Screen pF/m 180
Bending Radius   10xOverall Diameter
Operating Temperature -30~80

Dimensions

Ordering Code No. of Cores Insulation Thickness Sheath Thickness Overall Diameter
    mm mm mm
BE119546V 50 0.25 1.14 12.5
BE119546H 50 0.25 1.14 12.5
