Multipair Overall Screened Cables - Belden Equivalent 9306

Applications

These multipair overall screened cables have pairs laid up in an aluminum/polyester tape with a tinned copper drain wire. These cables are suitable for used as audio, control and instrumentation cables.

Construction

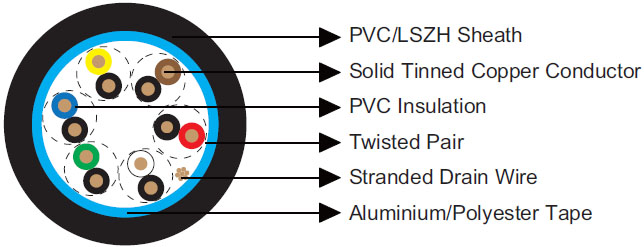

Belden Equivalent 9306
Conductor Tinned copper wire.
Insulation PVC.
Overall Screen Aluminium/Polyester tape.
Drain Wire Tinned copper wire.
Sheath PVC (V type)/LSZH (H type).
Insulation Colour Black/Red, Black/White, Black/Green, Black/Blue, Black/Yellow, Black/Brown.

Electrical & Mechanical Characteristics

AWG   22
Conductor Construction   Solid
UL Style   2464
Maximum Conductor Resistance Ω/km 54.8
Voltage Rating V 300
Nominal Capacitance Conductor to Conductor pF/m 115
Nominal Capacitance Conductor to Screen pF/m 164
Bending Radius   10xOverall Diameter
Operating Temperature -20~80

Dimensions

Ordering Code No. of Cores Insulation Thickness Sheath Thickness Overall Diameter
    mm mm mm
BE119306V 6 0.33 0.81 8.0
BE119306H 6 0.33 0.81 8.0
