Multipair Overall Screened Cables - Belden Equivalent 9681
Applications
These multipair overall screened cables have pairs laid up in an aluminum/polyester tape with a tinned copper drain wire. These cables are used as low capacitance computer cables for EIA RS-232/422 applications.

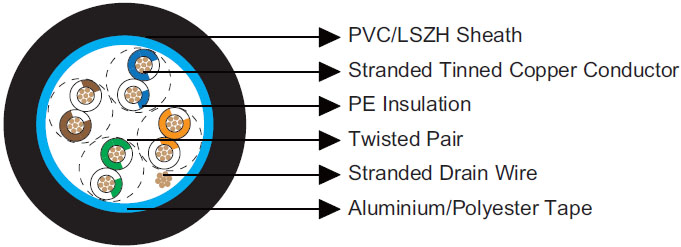

Construction
| Conductor |
Tinned copper wire. |
| Insulation |
PE. |
| Overall Screen |
Aluminium/Polyester tape. |
| Drain Wire |
Tinned copper wire. |
| Sheath |
PVC (V type)/LSZH (H type). |
| Insulation Colour |
White/Blue & Blue/White, White/Orange & Orange/White, White/Green & Green/White, White/Brown & Brown/White. |
Electrical & Mechanical Characteristics
| AWG |
|
24 |
| Conductor Construction |
|
7x0.2 |
| UL Style |
|
2919 |
| Maximum Conductor Resistance |
Ω/km |
85 |
| Voltage Rating |
V |
30 |
| Nominal Capacitance Conductor to Conductor |
pF/m |
51 |
| Nominal Capacitance Conductor to Screen |
pF/m |
90 |
| Bending Radius |
|
10xOverall Diameter |
| Operating Temperature |
℃ |
-20~80 |
Dimensions
| Ordering Code |
No. of Cores |
Insulation Thickness |
Sheath Thickness |
Overall Diameter |
| |
|
mm |
mm |
mm |
| BE119681V |
4 |
0.25 |
0.89 |
7.1 |
| BE119681H |
4 |
0.25 |
0.89 |
7.1 |
