CK 059/H2C2:RG59BX + 2 x 0.75mm2+ 2 x 0.22mm2

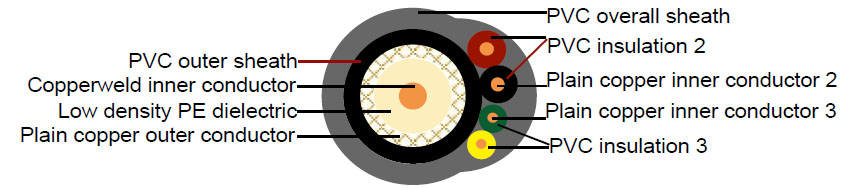

Construction :

  • Inner conductor 1 Copper covered steel(CCS) 0.58 mm
    Dielectric Low density PE Φ3.70 ± 0.10 mm
    Outer conductor (shield) Plain copper 180 x 0.10 mm
    Shield coverage   94%
    Sheath PVC Φ6.20 ± 0.10 mm
    Inner conductor 2 Plain copper 2x 0.75 mm2
    Insulated cores 2 PVC 2 x Φ1.70 ± 0.10 mm
    Inner conductor 3 Plain copper 2 x 0.22 mm2
    Insulated cores 3 PVC 2 x Φ1.00 ± 0.10 mm
    Overall sheath PVC/LSOH Φ10.40 ± 0.30 mm
  •

Electrical & Mechanical Characteristics :

  • Impedance 75±5 Ohm
    Nominal capacitance 67 pF/m
    Velocity of propagation 66%
    Insulation resistance >2000 Mohm.Km
    Inner conductor resistance 158 Ohm/Km
    Outer conductor resistance 11 Ohm/Km
    Operating temperature range -25°C - +80 °C
    Cores resistance 0.22 mm2 / 0.75 mm2 82 Ohm/Km /26 Ohm/Km
    Operatig Voltage(max) 0.25 KV/0.3 KV
    Test Voltage 1.2 KV/2.0 KV
    Copper weight 33.1 Kg/Km
    Cable weight (approx.) 153.4 Kg/Km
    Screening effectiveness >55 dB

Attenuation :

  • Frequency(MHz) Attenuation (dB/100 m) Attenuation (dB/100 ft)
    50 7.4 2.26
    100 10.7 3.26
    200 15.7 4.79
    400 22.7 6.92
    500 25.7 7.84
    600 28.7 8.75
    860 34.8 10.61
    1000 38.0 11.59

Return Loss :

  • 30-300 MHz >31dB
    300-600 MHz >28dB
    600-900 MHz >24dB
>
