RF 59 LL

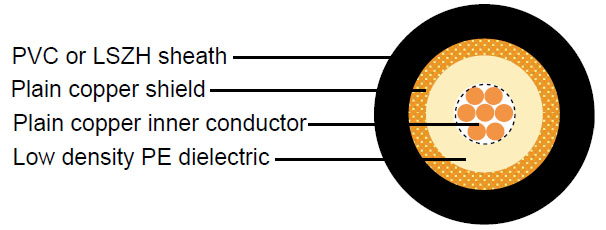

Construction :

  • Inner conductor Plain copper 7 x 0.25 mm
    Dielectric Foam PE Φ3.70 ± 0.10 mm
    Outer conductor (shield) Plain copper 120 x 0.15 mm
    Shield coverage   95%
    Sheath PVC or LSZH Φ6.15 ± 0.10 mm
  •

Electrical & Mechanical Characteristics :

  • Impedance 75±5 Ohm
    Nominal capacitance 56 pF/m
    Velocity of propagation 80%
    Insulation resistance >5000 Mohm.Km
    Inner conductor resistance 49 Ohm/Km
    Outer conductor resistance 9 Ohm/Km
    Operating temperature range -30 °C - +70 °C
    Copper weight 23.8 Kg/Km
    Cable weight (approx.) 53.0 Kg/Km
    Screening effectiveness >55 dB

Attenuation :

  • Frequency(MHz) Attenuation (dB/100 m) Attenuation (dB/100ft)
    50 7.1 2.16
    100 10.1 3.08
    200 14.0 4.27
    400 20.2 6.16
    500 23.6 7.20
    600 26.2 7.99
    860 32.2 9.82
    1000 34.8 10.61

Return Loss :

  • 30-300 MHz >25dB
    300-600 MHz >24dB
    600-900 MHz >20dB
>
