RF 195 LTA

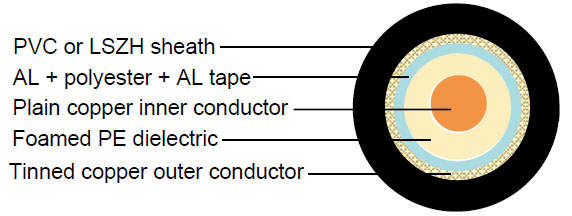

Construction :

  • Inner conductor Plain copper 0.95 mm
    Dielectric Foam PE Φ2.80 ± 0.10 mm
    Outer conductor (shield 1) Aluminium + polyester + Aluminium tape
    Shield coverage   100%
    Outer conductor (shield 2) Tinned copper 96 x 0.12 mm
    Shield coverage   85%
    Sheath PVC or LSZH Φ5.00 ± 0.10 mm
  •

Electrical & Mechanical Characteristics :

  • Impedance 50±3 Ohm
    Nominal capacitance 80 pF/m
    Velocity of propagation 80%
    Insulation resistance >5000 Mohm.Km
    Inner conductor resistance 25.2 Ohm/Km
    Outer conductor resistance 18.5 Ohm/Km
    Operating temperature range -30 °C - +70 °C
    Copper weight 16.6 Kg/Km
    Cable weight (approx.) 36.6 Kg/Km
    Screening effectiveness >80 dB

Attenuation :

  • Frequency(MHz) Attenuation (dB/100 m) Attenuation (dB/100ft)
    50 8.5 2.59
    100 11.3 3.45
    400 22.9 6.98
    600 28.7 8.75
    860 34.5 10.52
    1000 37.5 11.43
    1750 52.2 15.91
    2400 64.0 19.51

Return Loss :

  • 30-300 MHz >28dB
    300-600 MHz >24dB
    600-900 MHz >19dB
>
