RF 8 MINI

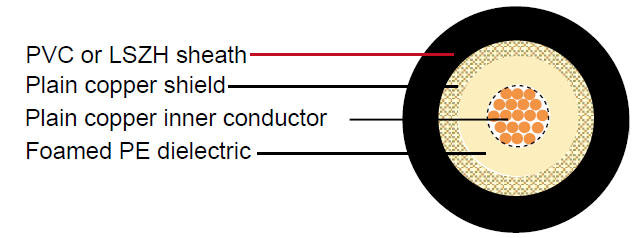

Construction :

  • Inner conductor Plain copper 19 x 0.28 mm
    Dielectric Foam PE Φ3.90 ± 0.15 mm
    Outer conductor (shield) Plain copper 128 x 0.12 mm
    Shield coverage   88%
    Sheath PVC or LSZH Φ6.10 ± 0.10 mm
  •

Electrical & Mechanical Characteristics :

  • Impedance 50±3 Ohm
    Nominal capacitance 80 pF/m
    Velocity of propagation 80%
    Insulation resistance >5000 Mohm.Km
    Inner conductor resistance 15.5 Ohm/Km
    Outer conductor resistance 14 Ohm/Km
    Operating temperature range -25 °C - +80 °C
    Copper weight 25.2 Kg/Km
    Cable weight (approx.) 53.7 Kg/Km
    Screening effectiveness >55 dB

Attenuation :

  • Frequency(MHz) Attenuation (dB/100 m) Attenuation (dB/100ft)
    50 7.2 2.20
    100 10.5 3.20
    400 22.2 6.77
    600 27.6 8.41
    860 33.9 10.34
    1000 37.0 11.28
    1750 51.6 15.73
    2400 64.5 19.66

Return Loss :

  • 30-300 MHz >26dB
    300-600 MHz >25dB
    600-900 MHz >23dB
>
