RG 58/U

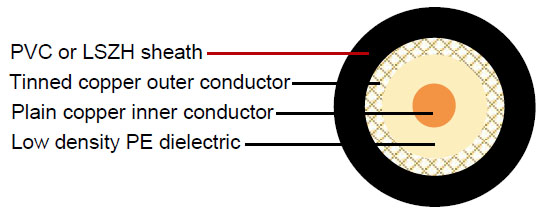

Construction :

  • Inner conductor Plain copper Φ0.80 ± 0.025 mm
    Dielectric Low density PE Φ2.95 ± 0.10 mm
    Outer conductor Tinned copper 112 x 0.13 mm
    Shield coverage   95%
    Sheath PVC or LSZH Φ5.00 ± 0.10 mm
  •

Electrical & Mechanical Characteristics :

  • Impedance Nom.53±3 Ohm
    Nominal capacitance 94 pF/m
    Velocity of propagation 66%
    Insulation resistance >2000 Mohm.Km
    Inner conductor resistance 35.0 Ohm/Km
    Outer conductor resistance 16.5 Ohm/Km
    Test/Operatig Voltage(max) 5 KV/2 KV
    Operating temperature range -30 °C - +70 °C
    Copper Weight 18.7 Kg/Km
    Cable weight (approx.) 39.9 Kg/Km
    Screening effectiveness 100-900 MHz >55dB

Attenuation :

  • Frequency(MHz) Attenuation (dB/100 m) Attenuation (dB/100ft)
    50 9.1 2.77
    100 13.1 3.99
    200 19.4 5.91
    400 28.4 8.66
    500 32.2 9.82
    600 35.7 10.88
    860 44.8 13.66
    1000 49.0 14.94

Return Loss :

  • 30-300 MHz >26dB
    300-600 MHz >25dB
    600-900 MHz >24dB
>
