RG 58 CX

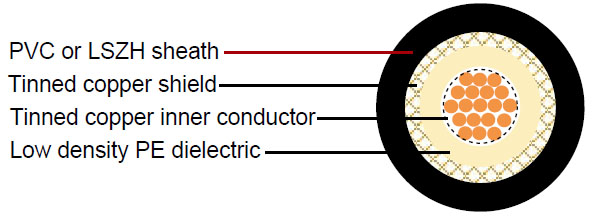

Construction :

  • Inner conductor Tinned copper 19 x 0.18 mm
    Dielectric Low density PE Φ2.95 ± 0.10 mm
    Outer conductor (shield) Tinned copper 140 x 0.10 mm
    Shield coverage   93%
    Sheath PVC or LSZH Φ5.00 ± 0.10 mm
  •

Electrical & Mechanical Characteristics :

  • Impedance 50±3 Ohm
    Nominal capacitance 100 pF/m
    Velocity of propagation 66%
    Insulation resistance >2000 Mohm.Km
    Inner conductor resistance 37.5 Ohm/Km
    Outer conductor resistance 17 Ohm/Km
    Operating temperature range -30 °C - +70 °C
    Copper weight 14.9 Kg/Km
    Cable weight (approx.) 37.1 Kg/Km
    Screening effectiveness >55 dB

Attenuation :

  • Frequency(MHz) Attenuation (dB/100 m) Attenuation (dB/100 ft)
    50 9.7 2.96
    100 13.9 4.24
    200 20.4 6.22
    400 30 9.15
    500 34.2 10.43
    600 37.9 11.55
    860 46.9 14.30
    1000 51.8 15.79

Return Loss :

  • 30-300 MHz >27dB
    300-600 MHz >23dB
    600-900 MHz >22dB
>
