M17/29-RG 59 (RG 59 B/U)

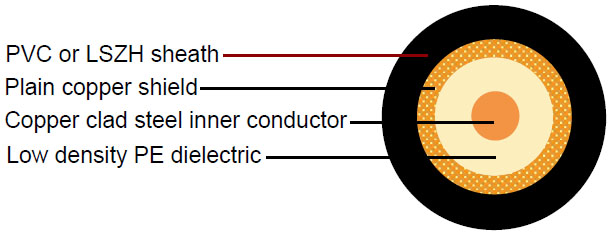

Construction :

  • Inner conductor Copper clad steel(CCS) Φ0.58 ± 0.03 mm
    Dielectric Low density PE Φ3.70 ± 0.10 mm
    Outer conductor (shield) Plain copper 120 x 0.15 mm
    Shield coverage   95%
    Sheath PVC or LSZH Φ6.20 ± 0.10 mm
  •

Electrical & Mechanical Characteristics :

  • Impedance 75±5 Ohm
    Nominal capacitance 67 pF/m
    Velocity of propagation 66%
    Insulation resistance >2000 Mohm.Km
    Inner conductor resistance 158 Ohm/Km
    Outer conductor resistance 9.0 Ohm/Km
    Test/Operatig Voltage(max) 5.0 KV/3.5 KV
    Operating temperature range -30 °C - +70 °C
    Copper weight 22.4 Kg/Km
    Cable weight (approx.) 55.8 Kg/Km
    Screening effectiveness >55 dB

Attenuation :

  • Frequency(MHz) Attenuation (dB/100 m) Attenuation (dB/100ft)
    50 7.4 2.26
    100 10.7 3.26
    200 15.7 4.79
    400 22.7 6.92
    500 25.7 7.84
    600 28.7 8.75
    860 34.8 10.61
    1000 38.0 11.59

Return Loss :

  • 30-300 MHz >31dB
    300-600 MHz >28dB
    600-900 MHz >24dB
>
