RG 6

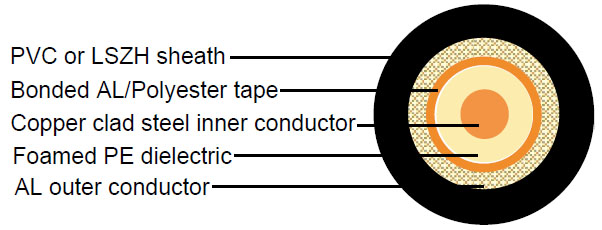

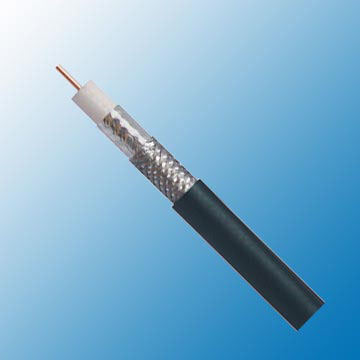

Construction :

  • Inner conductor Copper clad steel (CCS) Φ1.02 mm
    Dielectric Foam PE Φ4.57 ± 0.20 mm
    Tape shield(shield 1) Bonded Aluminium/Polyester
    Shield coverage   100%
    Outer conductor(shield 2) Aluminium 96 x 0.12 mm
    Shield coverage   82%
    Sheath PVC or LSZH Φ6.91 mm
  •

Electrical & Mechanical Characteristics :

  • Impedance 75±5 Ohm
    Nominal capacitance 54 pF/m
    Velocity of propagation 83%
    Insulation resistance >5000 Mohm.Km
    Inner conductor resistance 21.7 Ohm/Km
    Outer conductor resistance 24.1Ohm/Km
    Operating temperature range -30 °C - +70 °C
    Cable weight (approx.) 45 Kg/Km

Attenuation :

  • Frequency(MHz) Attenuation (dB/100 m) Attenuation (dB/100ft)
    50 5.0 1.5
    100 6.7 2.0
    200 9.5 2.9
    400 14.1 4.2
    700 19.9 6.0
    900 23.2 7.0
    1000 24.8 7.5
    1350 29.9 9.0
    1750 35.1 10.5
    2150 37.9 11.4
    2500 39.0 11.7
>
