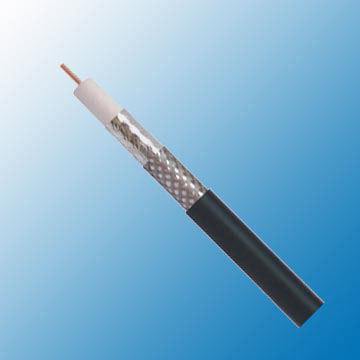

RG 6/U



Construction :

  • Inner conductor Bare copper Φ1.02 mm
    Dielectric Foam PE Φ4.57 ± 0.20 mm
    Tape shield(shield 1) Aluminium foil
    Shield coverage   100%
    Outer conductor(shield 2) Aluminium 96 x 0.12 mm
    Shield coverage   70%
    Sheath PVC or LSZH Φ7.00 ± 0.20 mm
  •

Electrical & Mechanical Characteristics :

  • Impedance 75±5 Ohm
    Nominal capacitance 54 pF/m
    Velocity of propagation 82%
    Insulation resistance >5000 Mohm.Km
    Inner conductor resistance 23.1 Ohm/Km
    Outer conductor resistance 31Ohm/Km
    Operating temperature range -30 °C - +70 °C
    Cable weight (approx.) 43 Kg/Km

Attenuation :

  • Frequency(MHz) Attenuation (dB/100 m) Attenuation (dB/100ft)
    50 5.0 1.5
    100 6.4 1.96
    200 9.2 2.8
    500 14.5 4.4
    600 15.9 4.9
    800 17.7 5.4
    1000 21.9 6.7
    1350 24.9 7.6
    1750 29.0 8.8
    2050 33.1 10.1
    2400 36.4 11.1
>
