SF141 (Flexible RG 402)

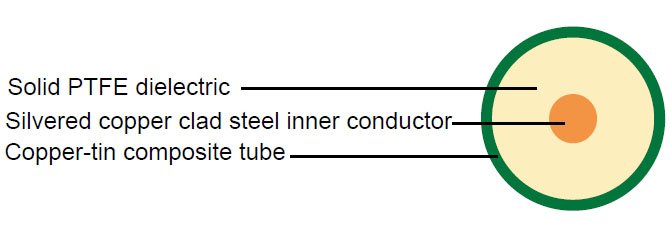

Construction :

  • Inner conductor Silver plated copper clad steel Φ0.94 mm
    Dielectric Solid PTFE Φ2.95 ± 0.10 mm
    Outer conductor Tinned copper Φ3.58 ± 0.10 mm
    Shield coverage   100%
  •

Electrical & Mechanical Characteristics :

  • Impedance 50±3 Ohm
    Nominal capacitance 92 pF/m
    Velocity of propagation -
    Insulation resistance - Mohm.Km
    Inner conductor resistance - Ohm/Km
    Outer conductor resistance - Ohm/Km
    Max.operating voltage 1.9KV
    Operating temperature range -65°C - +165 °C
    Min.bending radius 8 mm

Attenuation :

  • Frequency(GHz) Max. Attenuation(dB/100m) Max. Attenuation(dB/100ft)
    0.5 27 8.3
    1 39 11.9
    5 99 30.2
    10 152 46.3
    20 239 72.8
>
