Tri-RG178

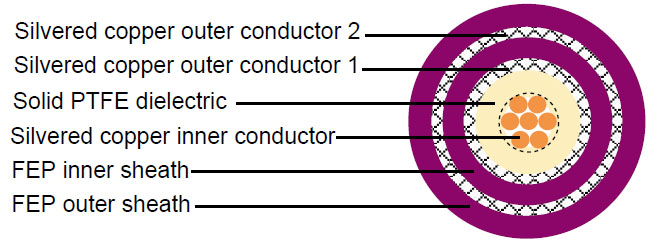

Construction :

  • Inner conductor Silver plated copper covered steel (SCCS) 7 x 0.10 mm
    Dielectric Solid PTFE Φ0.86 ± 0.10 mm
    Outer conductor (shield 1) Silver plated copper Φ1.26 ± 0.10 mm
    Inner sheath FEP Φ1.80 ± 0.10 mm
    Outer conductor (shield 2) Silver plated copper Φ2.20 ± 0.10 mm
    Outer sheath FEP Φ2.85 ± 0.10 mm
  •
  •

Electrical & Mechanical Characteristics :

  • Impedance 50±5 Ohm
    Nominal capacitance 96.5 pF/m
    Velocity of propagation 70%
    Insulation resistance - Mohm.Km
    Inner conductor resistance 800.5 Ohm/Km
    Outer conductor resistance 27.9 Ohm/Km
    Operatig Voltage(max) 1 KV
    Test Voltage
    Operating temperature range -55°C - +200 °C
    Cable weight (approx.) 24 Kg/Km
    Screening effectiveness >60 dB

Attenuation :

  • Frequency (MHz) Attenuation (dB/100 m) Max. Attenuation(dB/100ft)
    100 45.3 13.8
    400 91.2 27.8
    1000 145.7 44.4
    3000 257.2 78.4
>
