1x RG59 + 7x1x2x22AWG Data Cable + 3x16 AWG Power Cable TCWB FRPVC Sheathed Composite Cable

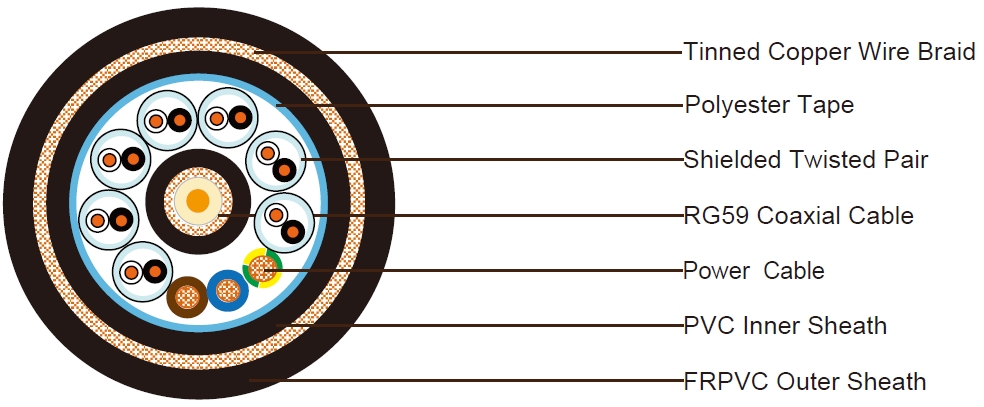

Construction:

Composite Cable

1x75Ohm RG59 Coaxial Cable

Conductor 0.58mm Solid copper conductor
Insulation Polyethylene.Thickness1.56mm
Shield Braid of bare copper wire. Coverage ≥ 95%
Sheath LSZH sheath. Nominal outer diameter 6.15mm
Sheath Color Black

7x1x2x22 AWG Shielded Twisted Pair Data Cables

Conductor 7/0.254mm
Insulation PE material. Thickness 0.6mm
Insulation Color Black and white with numbering
Individual Shield Aluminium polyester tape with 24 AWG drain wire

3x16AWG Power Cable

Conductor 16AWG wire
Insulation XLPE. Thickness 0.7mm
Insulation Color Blue, Brown and Green/Yellow

Element Assembly

Filler PP material if necessary
Wrapping Tape Polyester tape
Shield Tinned copper wire braid, coverage 80%
Outer Sheath UV resisting FRPVC, thickness 1.8mm, norminal outer diameter 25.0mm
Sheath Color Black
Cable Weight 850kg/km

Electrical and Physical Properties@20°C:

Coaxial Cable

  • Impedance: 75±3Ohm (@1MHz)
  • Nominal Attenuation: 7.5dB/100m @50MHz

Power Cable

  • Electrical Resistance: 6.6Ohm/km
  • Insulation Resistance: ≥5500 MOhmxkm

Data Pairs

  • Electrical Resistance:90Ohm/km
  • Insulation Resistance: ≥1000 MOhmxkm

Element Assembly

  • Min Bending Radius: 420mm
  • Operating Temperature: -35°C/+80°C

Fire Performance:

  • Low Smoke Capacity:IEC61034-1/2
  • Halogen Free:IEC60754-1/2
  • Flame Propagation: IEC60332
