1xRG59+ 3xPower Cable +1x2x24AWG RS485 SWB LSZH Sheathed Composite Cable

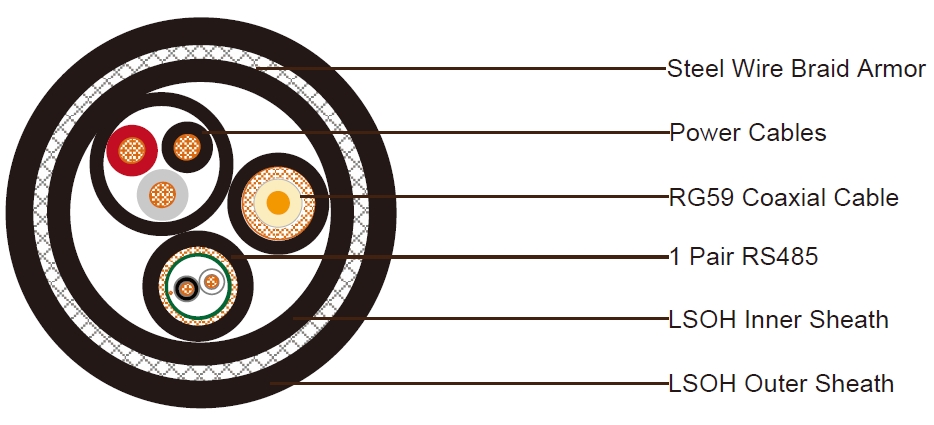

Construction:

Composite Cable

1x75Ohm RG59 Coaxial Cable

Conductor 0.58mm Solid copper conductor
Insulation Polyethylene.Thickness 1.56mm
Shield Braid of bare copper wire. Coverage ≥ 85%
Sheath LSZH sheath. Nominal outer diameter 6.2mm
Sheath Color Black

1 Pair 24AWG RS485

Conductor 7/0.2mm
Insulation PE material. Thickness 0.6mm
Insulation Color Black and white with numbering
Shield 1 Aluminium polyester tape with 24 AWG drain wire
Shield 2 Tinned copper wire braiding
Sheath PVC sheath. Nominal outer diameter is 6.0mm
Sheath Color Black

3x2.5mm^2 Power Cable

Conductor 2.5mm^2 wire
Insulation XLPE. Thickness 0.7mm
Sheath LSZH compound. Nominal diameter is 11.0mm

Element Assembly

Filler PP material if necessary
Inner Sheath Black LSZH, thickness 1.0mm
Armor Steel wire braid, coverage 85%
Outer Sheath LSZH, thickness 1.8mm, nominal outer diameter is 25.0mm
Sheath Color Black

Electrical and Physical Properties@20°C:

Coaxial Cable

  • Impedance: 75±3Ohm (@1MHz)
  • Nominal Attenuation: 8.2dB/100m @50MHz

Power Cable

  • Electrical Resistance: 7.56Ohm/km

RS485

  • Nominal Impedance: 120±10Ω
  • Nominal Conductor DC Resistance @20°C: 78.7 Ohm/km
  • Nominal Attenuation: 1MHz 2.3dB/100m
  • Fire Performance:

    • Low Smoke Capacity:IEC61034-1/2
    • Halogen Free:IEC60754-1/2
    • Flame Propagation: IEC60332
