1xRG59 + 4 Core 62.5 Fiber Cable + 3xPower Cable + 2x1x2x24AWG Pairs SWB LSZH Sheathed Composite Cable

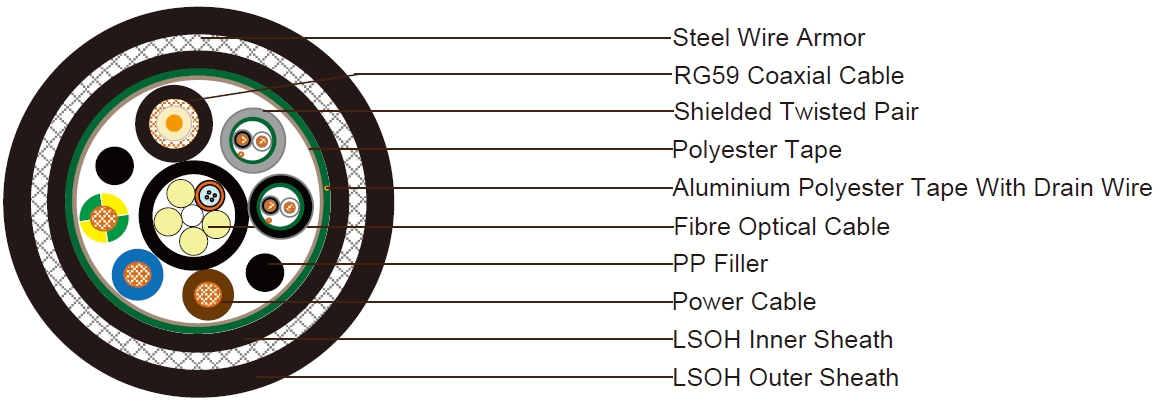

Construction:

Composite Cable

1x75Ohm RG59 Coaxial Cable

Conductor 0.58mm Solid coppe rconductor
Insulation Polyethylene.Thickness1.56mm
Shield Braid of bare copper wire. Coverage ≥ 95%
Sheath LSZH sheath. Nominal outer diameter 6.2mm
Sheath Color Black

4 core 62.5/125 Multi Loose Tube Type Fiber Cable

Fibers 4Cx62.5/125
Central Member Galvanized steel wire
Sheath Nominal outer diameter 9.6mm
Sheath Color Black

2x1x2x24AWG Shielded Twisted Pair

Conductor 7/0.2mm
Insulation PVC material. Thickness 0.47mm
Insulation Color Black and white
Shield Aluminium polyester tape with 0.5mm^2 drain wire.
Nominal outer diameter 3.5mm
Sheath LSZH (SHF1) sheath. Norminal outer diameter 5.2mm

3x2.5mm^2 Power Cable

Conductor 1.5mm^2 wire
Insulation Thickness 0.85mm. Outer diameter 3.6mm
Insulation Color Blue, Brown and Green/Yellow

Element Assembly

Filler PE or PP material
Wrapping Tape Polyester tape
Shield Aluminium polyester tape with 0.5mm^2 tinned copper drain wire
Inner Sheath Black LSZH (SHF1) , thickness 1.0-1.2mm
Armor Steel wire braid, coverage 85%
Outer Sheath LSZH (SHF1), thickness 1.8-2.0mm. norminal outer diameter 28.5mm
Sheath Color Black
