1x RG59 + 3x3 Power Cable + 2x1x2x24AWG Data Pairs SWB LSZH Sheathed Composite Cable

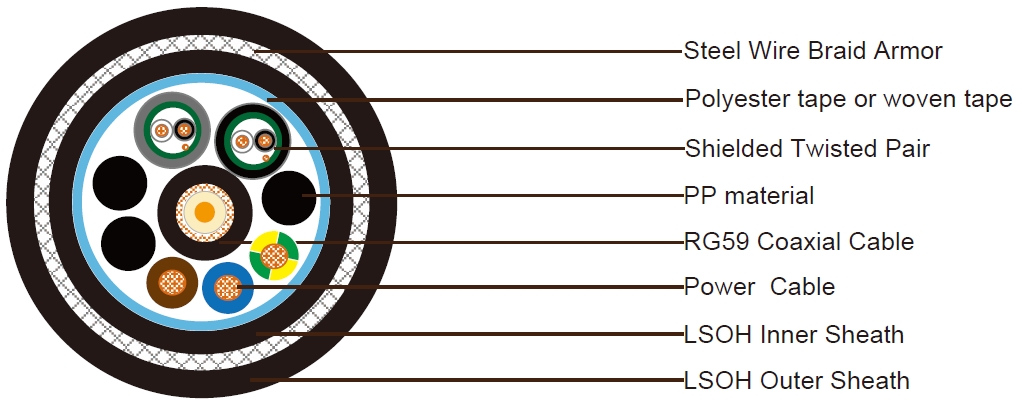

Construction:

Composite Cable

1x75Ohm RG59 Coaxial Cable

Conductor 0.58mm Solid copperweld (CCS)
Insulation Polyethylene.Thickness1.56mm
Shield Braid of bare copper wire. Coverage ≥ 95%
Sheath LSZH sheath. Nominal outer diameter 6.15mm
Sheath Color Black

2x1x2x24AWG Shielded Twisted Pair (around coaxial cable)

Conductor 7/0.2mm Stranded tinned copper
Insulation PVC material.Thickness0.4mm
Insulation Color Black and white
Shield Aluminium polyester tape
Drain Wire 24AWG drain wire
Sheath LSZH sheath.Nominal outer diameter 4.8mm.Thickness0.76mm
Sheath Color Black and Grey

3x3mm^2 Power Cable ( around coaxial cable)

Conductor 12AWG/3mm^2 wire
Insulation XLPE. Thickness 0.85mm. Outer diameter 3.65mm
Insulation Color Blue, Brown and Green/Yellow

Element Assembly

Filler PE or PP material
Wrapping Tape Polyester tape or woven tape
Inner Sheath Black LSZH, thickness 0.8mm
Armor Steel wire braid, coverage 95%
Outer Sheath LSZH, thickness 1.5mm, nominal outer diameter 22.0mm
Sheath Color Black

Electrical and Physical Properties@20°C:

Coaxial Cable

  • Impedance: 75±3Ohm (@1MHz)
  • Nominal Attenuation: 7.5dB/100m @50MHz

Power Cable

  • Electrical Resistance: 6.6Ohm/km
  • Insulation Resistance: ≥5500 MOhmxkm

Data Pairs

  • Electrical Resistance:90Ohm/km
  • Insulation Resistance: ≥1000 MOhmxkm

Element Assembly

  • Min Bending Radius: 420mm
  • Operating Temperature: -35°C/+80°C

Fire Performance:

  • Low Smoke Capacity:IEC61034-1/2
  • Halogen Free:IEC60754-1/2
  • Flame Propagation: IEC60332
