Outdoor Composite Cable

Model No. 2P1.5MM2+2C2.5MM-HCZ:

2PR×1.5mm2 Cu/PE/Overall Screen + 2C×2.5mm2 Cu/XLPE + LSZH/TCWB/SHF2

  • Composite Cable

Signal Cable

  • Composite Cable

Power Cable

  • Composite Cable

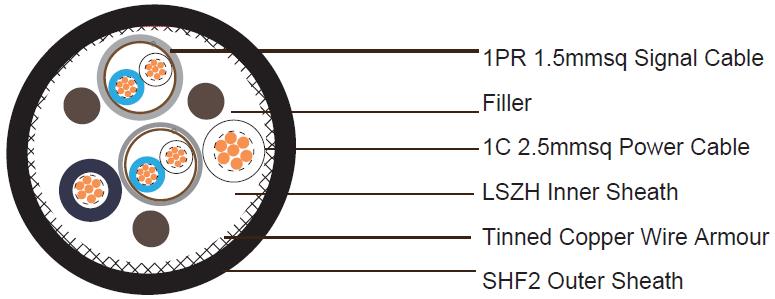

CONSTRUCTION

2PR×1.5mmsq Signal Cable

Conductor 7/0.53mm stranded copper wire , class2 to IEC60228
Insulation PE
Insulation Color Blue& White(other colors available)
Screen Alumminum tape with tinned copper drain wire.

2C×2.5mmsq Power Cable

Conductor 7/0.67mm stranded copper wire , class2 to IEC60228
Insulation XLPE.
Insultion Color Black , White

Element Assembly

Assembly The four units assemble together as the inner cable core with fillers.
Inner Sheath LSZH inner sheath, nom. thickness 0.9mm.
Overall Screen Tinned copper wire braiding
Outer Sheath
SHF LSZH compound. Overall diameter 18.2+/-3mm.
Sheath Color Black. Other colors also available upon request.

ELECTRICAL PROPERTIES @20°C

2.5mmsq Power Cable

Conductor Resistance @ 20°C : 7.41ohm/km

Insulation Resistance : ≥5GOhmxkm

Voltage rating : 0.6/1KV

1.5mmsq Signal Cable

Conductor Resistance @ 20°C : 12.1Ohm/km

Insulation Resistance : ≥5GOhmxkm

Voltage rating : 300/500V

Rated temperature : -20°C- 90°C

Gross weight : 501 Kg/km.

FIRE PERFORMANCE

Flame Retardance : IEC60332-1-2

Flame Propagation : IEC60332-3-22

Halogen Free : IEC60754-1/2

Low Smoke Capacity : IEC60134-1/2

Oxygen Index : ISO 4589-2

Temperature Index : ISO 4589-3
