3x2.5 Power Cable + 2C FOC+ 1PR1.5 Data Cable SWA LSZH Sheathed Composite Cable

Part No. 1707057-1

  • Composite Cable

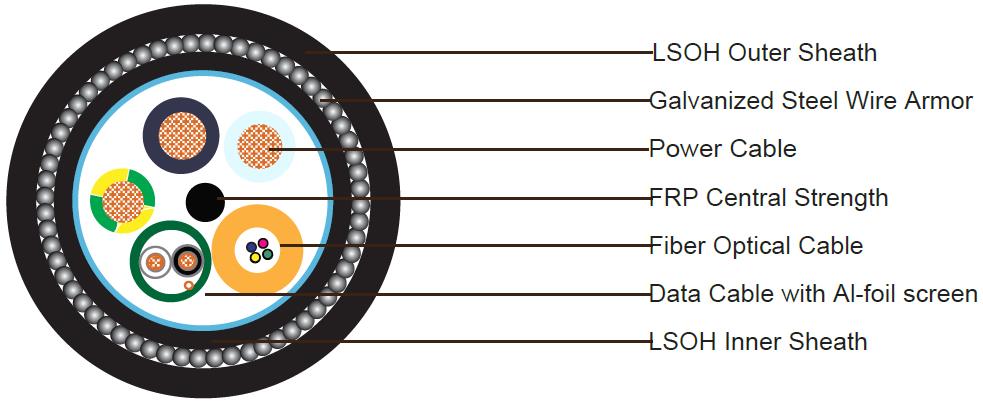

CONSTRUCTION

3x2.5mm² Power Cable

Conductor 7/0.67mm Stranded bare copper wire
Insulation XLPE. Thickness is 0.7mm. Outer diameter 3.5mm
Insulation Color Black,White and Green/Yellow

2/C Optic Fiber Cable, Multi-mode

No. of fibers in loose tube
50/125um fibers meet or exceed the requirements of ITUT G.651
Tight buffer Aramid yarn, sheathed with LSZH. Outer diameter 3.8 +/-0.5mm

1x2x1.5mm² Shielded Twisted Pair

Conductor 7/0.53mm Stranded copper
Insulation PE. Thickness 0.6mm
Insulation Color Black , White
Individual Shield Aluminum polyester tape
Drain Wire 24 AWG stranded tinned copper

Element Assembly

Central Strength Member FRP central strength member
Assembly The three units assemble together as the inner cable core with fillers
Inner Jacket LSZH, thickness 1.0mm
Armor Galvanised steel wire armour, nom.diameter: 0.9mm
Sheath
LSZH, thickness is 1.5mm, nominal outer diameter 20.8 +/-3mm
Sheath Color Black

OPTICAL CHARACTERISTICS

The Multi-mode fibers meet the ITU G.651 specification, as listed below :

Property 50/125 fibers 62.5/125 fibers
Attenuation @ 850 nm (dB/km) ≤3.0 ≤3.2
Attenuation @ 1300 nm (dB/km) ≤0.9 ≤1.0
Added Attenuation with Bending ≤0.5 dB (850 and 1300 nm for 100 turns around a 75 mm mandrel
Numerical Aperture 0.20 ± 0.02 0.275 ± 0.015
Bandwidth @ 850 nm 500 MHz*km 160 MHz*km
Bandwidth @ 1300 nm 800 MHz*km 500 MHz*km
Core diameter 50 ± 3μm 62.5 ± 3μm
Cladding diameter 125 ± 2μm
Core-Claddingoffset ≤6%
Cladding non-circularity ≤2%
Core non-circularity ≤6%
Coating diameter 245 ± 10μm
Coating / Cladding offset 12μm
Proof Test ≥0.69 GN/m2 (100 kpsi)

The fibers contain no splices.

ELECTRICAL PROPERTIES @20°C

2.5mmsq Power Cable

Conductor Resistance @ 20°C : 7.41ohm/km

Insulation Resistance : ≥5GOhmxkm

Voltage rating : 300/500V or 0.6/1KV as option

1.5msmq data cable

Conductor Resistance @ 20°C : 12.1Ohm/km

Insulation Resistance : ≥5GOhmxkm

Voltage rating : 300/500V

MECHANICAL PROPERTIES

Tensile load :

Operating : 3000N

Installation : 8000N

Bending radius :

Operating : 12.5×OD

Installation : 25×OD

Compressive load :

Short term : 6000N

Long term : 4000N

FIRE PROTECTION CHARACTERISTICS

Flame Propagation : IEC 60332-1 , IEC 60332-3-24

Low Smoke Capacity : IEC 61034-1/2

Halogen Free : IEC 60754-1/2
