VGA Cable （3 Elements Coaxial Cable + 6 Elements Control Cable）

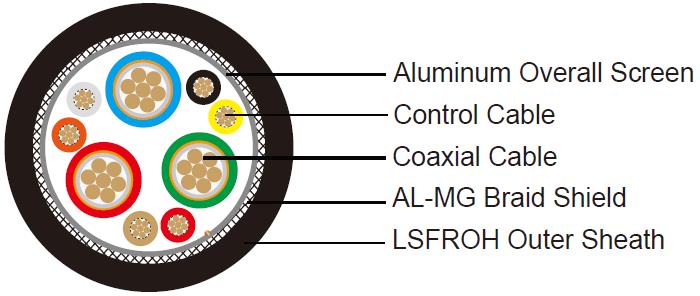

CONSTRUCTION
3 Elements Coaxial Cable
| Conductor | 28AWG Stranded tinned copper wire |
| Insulation | FPE |
| Spiral | Tinned copper wire |
| Sheath | LSFROH |
| Color | Red, Green, Blue |
6 Elements Control Cable
| Conductor | 24AWG Stranded tinned copper wire |
| Insulation | PVC |
| Color | Yellow, Orange, White, Red, Black and Brown |
Assembly
| Overall Screen | Aluminum / mylar foil with drain wire |
| Braid Shield | AL-MG wire |
| Outer Sheath | LSFROH |
| Nom. Thickness | 1.2mm |
| Overall Diameter |
8.0mm+/-2.0mm |
| Sheath Color | Black. Other color available as per request |
PHYSICAL AND ELECTRICAL CHARACTERISTIC
| Rated Voltage | 30V |
| Temperature Rating | -25℃~+80℃ |
| Max. Conductor Resistance at 20 ℃ | -24AWG: ≤ 94.2 Ohm/Km -28AWG: ≤ 239 Ohm/Km |
| Min. Insulation Resistance | ≥100M Ohm/m |
| Voltage Withstand | AC 500V/1min., no breakdown |
| Coaxial Cable Impedance | 7 +/- 5Ω |
| Minimum bending radius | |
| Fixed installation | 5 x Overall Diameter |
| Sporadic movement | 10 x Overall Diameter |
FIRE PERFORMANCE IN GENERAL
Flame Propagation to IEC 60332 Part 3
Low Smoke Emission to IEC 1034-2 NFF 16-101
Zero Halogen Gas Emission with HCL of 0.5% when tested to IEC754-1
FIRE PERFORMANCE RELATING TO ROLLING STOCK APPLICATION
DIN 5510-2
BS 6853
NFF16-101
