VGA Cable （3 Elements Coaxial Cable + 5 Elements Control Cable）
CONSTRUCTION
3 Elements Coaxial Cable
| Conductor | Stranded tinned copper wire, 26AWG (7/0.16mm) |
| Insulation | Foam PE |
| Spiral Shield | Tinned copper wire braid, coverage: ≥90% |
| Sheath | LSZH |
| Color | Red, Green, Blue |
| Diameter | 3.0±0.2mm |
5 Elements Control Cable
| Conductor | Stranded tinned copper wire, 26AWG (7/0.16mm) |
| Insulation | PE |
| Color | White, Orange, Brown, Yellow and Black |

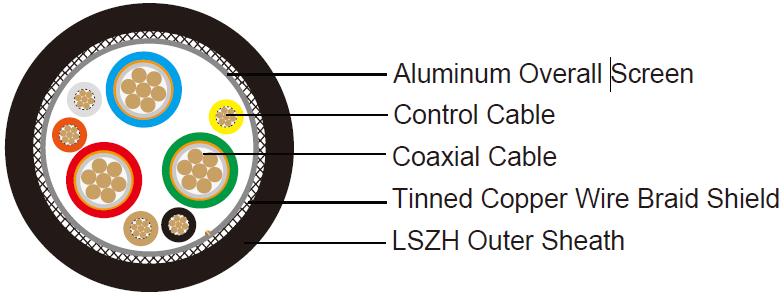

Assembly
| Overall Screen | Aluminum / mylar foil with drain wire |
| Braid Shield | Tinned copper wire braid, coverage: ≥80% |
| Outer Sheath | LSZH |
| Nom. Thickness | 1.0mm |
| Overall Diameter |
9.3mm+/-1.0mm |
| Sheath Color | Black. Other color available as per request |
PHYSICAL AND ELECTRICAL CHARACTERISTIC
| Rated Voltage | 30V |
| Operating Temperature | -20℃t o +70℃ |
| Max. Conductor Resistance at 20 ℃ | 26AWG : ≤150 Ohm/Km |
| Min. Insulation Resistance | ≥100M Ohm/m |
| Voltage Withstand | AC 500V/1min., no breakdown |
| Coaxial Cable Impedance | 75±5Ω |
| Attenuation (to be confirmed) | ≤0.31 dB/5m at 1MHz ≤0.54 dB/5m at 10MHz ≤1.08 dB/5m at 50MHz ≤1.46 dB/5m at 100MHz ≤1.95 dB/5m at 200MHz ≤2.84 dB/5m at 400MHz ≤4.26 dB/5m at 700MHz ≤5.35 dB/5m at 1000MHz |
FIRE PERFORMANCE IN GENERAL
EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2)
Vertical flame spread of vertically mounted bunched wires or cables
EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804
Low Smoke Emission
EN 50268-2; IEC 61034-2; NF C 32-073 ;NF C 20-902; NF F 16 101; VDE 0472 Teil 816
Halogen Free
EN 50267-2-1; IEC 60754-1; NF C 32-074; NF C 20-454; VDE 0472 Teil 815
Low Corrosivity (Acidity & Conductivity)
EN 50267-2-2/3; IEC 60754-2; NF C 32-074; NF C 20-453; VDE 0472 Teil 813
Low Toxicity
EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853
Smoke Index
NF F 63 808; BS6853; NF F 16 101
FIRE PERFORMANCE RELATING TO ROLLING STOCK APPLICATION
BS 6853
NF F 16 101
NF F 63 808
