Unarmoured LSZH Sheathed Composite Elevator Cable (3x1.5 Cable + Cat6 SF/UTP)
Applications
These cables are designed for installations in elevators, dumbwaiters, personnel, and material hoists.
Construction

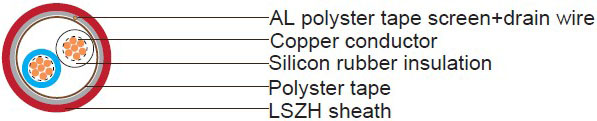

2Cx1.5mm^2 Audio Cable
| Conductor |
1.5mm^2 Stranded copper wire, class 5 to IEC60228. |
| Insulation |
Fire resistant silicone rubber compound. Nominal thickness 0.8mm. |
| Insulation Color |
White and blue. |
| Screen |
Alumminum tape with tinned copper drain wire. |
| Sheath |
LSZH sheath. Nominal thickness 1.0 mm. |
| Sheath Color |
Red. |
| General Standard |
Basic design to EN50288-7. |

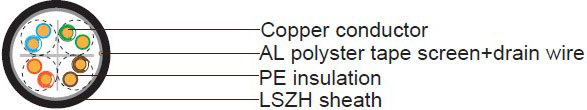

Cat 6 F/UTP
| Conductor |
24 AWG stranded plain copper. |
| Insulation |
PE material. Nominal diameter is 0.97mm. |
| Insulation Color |
White-orange,Orange; White-blue,Blue; White-green,Green; White-brown,Brown. |
| Screen |
Alumminum tape with tinned copper drain wire. |
| Sheath |
LSZH sheath. Nominal overall diameter is 6.5 mm. |
| Sheath Color |
Black or Grey or Blue. Other colors also available upon request. |
| Applications |
IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T; IEEE 802.5 16 MB; ISDN; TPDDI; ATM. |
| Standards |
ISO/IEC 11801, IEC 61156-5, EN 50173, ANSI/TIA 568B. |

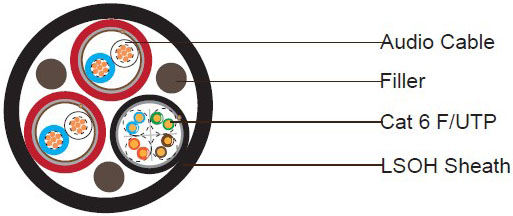

Element Assembly
| Filler |
PP material. |
| Wrapping Tape |
Polyester tape or woven tape |
| Outer Sheath |
High flexible LSZH. Nominal thickness 1.8mm |
| Sheath Color |
Black. Other colors also available upon request |
Electrical and Physical Properties@20°C
Audio Cable
| Max.Electrical Resistance |
12.3Ohm/km |
| Min. Insulation Resistance |
1000 MOhm/km |
| Operating Temperature |
-20°C/+90°C |
| Voltage rating |
300/500V |
| Insulation spark test |
7000 V r.m.s./H.F. |
| Max. Attenuation |
0.88 dB/km @800HZ |
| Max. Inductance |
0.75mH/km |
Cat 6 F/UTP (1-250MHz)
| Max.Electrical Resistance |
93.8 Ohm/km |
| Min.Insulation Resistance |
2000 MOhm/km |
| Operating Temperature |
-20°C/+70°C |
| Max.Resistance Unbalance |
5% |
| Max. Mutual Capacitance |
5.6nF/100m |
| Max. Capacitance Unbalance |
330pF/100m |
| Characteristic Impedance |
100 ± 15 (1-250MHz) |
| Nominal Velocity of Propagation |
69% |
| Max. Propagation Delay |
536ns/100m@100MHz |
| Max.Propagation Delay skew |
45ns/100m(1-125MHz) |
| Test voltage (DC, 1 min) Core/Core |
1000V |
Fire Performance
Audio Cable
| Fire Resistance |
IEC60331 |
| Flame Retardance |
IEC60332-1-2 |
| Fire Propagation |
IEC60332-3-22 |
| Halogen Free |
IEC60754-1/2 |
| Low Smoke Capacity |
IEC61034-1/2 |
| Oxygen Index |
ISO 4589-2 |
| Temperature Index |
ISO 4589-3 |
Cat 6 F/UTP
| Flame Retardance |
IEC60332-1-2 |
| Fire Propagation |
IEC60332-3-22 |
| Halogen Free |
IEC60754-1/2 |
| Low Smoke Capacity |
IEC61034-1/2 |
| Oxygen Index |
ISO 4589-2 |
| Temperature Index |
ISO 4589-3 |
Element Assembly
| Flame Retardance |
IEC60332-1-2 |
| Fire Propagation |
IEC60332-3-22 |
| Halogen Free |
IEC60754-1/2 |
| Low Smoke Capacity |
IEC61034-1/2 |
| Oxygen Index |
ISO 4589-2 |
| Temperature Index |
ISO 4589-3 |
