Fire Resistant UTP CAT 6 Data Cables
CAT6UTP4P23FR
APPLICATION
Category 6 Cable is a cable standard for Gigabit Ethernet and other network protocol that is backward compatible with the Category 5/5E and Category3 Cable Standard. Cat. 6 feature more stringent specification for crosstalk and system noise. The cable standard is suitable for 10BaseT, 100BaseTx & 1000BaseT (Gigabit Ethernet) application.
With fire barrier tape, it will continue to transmit data even when being directly attacked by fire.
STANDARDS
FIRE PERFORMANCE
| Circuit Integrity |
IEC 60331-23 |
| Flame Retardance (Single Vertical Wire Test) |
EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
| Reduced Fire Propagation (Vertically-mounted bundled wires & cable test) |
EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1);CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
| Halogen Free |
IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1; BS 6425-1* |
| No Corrosive Gas Emission |
IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2; BS 6425-2* |
| Minimum Smoke Emission |
IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2* |
| No Toxic gases |
NES 02-713; NF C 20-454 |
Note: Asterisk * denotes superseded standard.
VOLTAGE RATING
110V

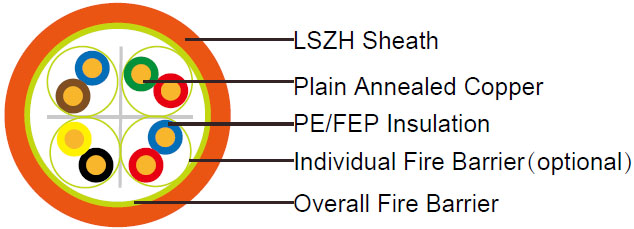

CABLE CONSTRUCTION
| Conductors |
Plain annealed copper wire, solid according to IEC 60228 class 1 |
| Insulation |
PE or fluoropolymer(FEP) compound |
| Fire Barrier |
Fire resistance tape wrapped around the individual pairs or core assembly |
| Cabling Elements |
Insulated cores are twisted to form pairs with varying lay length to minimize crosstalk. Two-pair cable had four cores laid in quad formation |
| Separator |
Plastic separator |
| Sheath |
Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered.). UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option |
PHYSICAL AND THERMAL PROPERTIES
| Temperature range during operation (fixed state) |
-20°C - +60°C |
| Temperature range during installation (mobile state) |
-5°C - +50°C |
| Minimum bending radius |
10 x Overall Diameter |
ELECTRICAL PROPERTIES
| Characteristic Impedance |
100±15Ω |
| Nominal Velocity of Propagation (NVP) |
69% |
| Max. DC Resistance |
7.5 Ω/100M |
| Max. Resistance Unbalance |
3% |
| Max. Mutual Capacitance |
5.6 NF/100M |
| Maximum Capacitance Unbalance |
330 PF/100M |
| Max. Propagation Delay Skew |
30 NS/100M |
| Max. Propagation Delay |
536 NS/100M@100MHZ |
| Max. Pulling Load |
80 N |
TRANSMISSION PROPERTIES
| Frequency |
Min.RL |
Max.Attenuation |
NEXT |
PSNEXT |
| MHz |
dB |
dB/100m |
dB |
dB |
| 1 |
18 |
1.0 |
74.3 |
72.3 |
| 4 |
21 |
2.8 |
65.3 |
63.3 |
| 8 |
22.5 |
4.3 |
60.8 |
58.8 |
| 10 |
23 |
5.0 |
59.3 |
57.3 |
| 16 |
23 |
6.6 |
56.2 |
54.2 |
| 20 |
23 |
7.5 |
54.8 |
52.8 |
| 25 |
22.3 |
8.5 |
53.3 |
51.3 |
| 31.25 |
21.6 |
9.7 |
51.9 |
49.9 |
| 62.5 |
19.5 |
14.4 |
47.4 |
45.4 |
| 100 |
18.1 |
18.8 |
44.3 |
42.3 |
| 200 |
16 |
28 |
39.8 |
37.8 |
| 250 |
15.3 |
31.8 |
38.3 |
36.3 |
| Frequency |
ELFEXT |
PSELFEXT |
ACR |
| MHz |
dB |
dB |
dB |
| 1 |
67.8 |
64.8 |
72.3 |
| 4 |
55.8 |
52.8 |
61.5 |
| 8 |
49.7 |
46.7 |
55.5 |
| 10 |
47.8 |
44.8 |
53.3 |
| 16 |
43.7 |
40.7 |
48.6 |
| 20 |
41.8 |
38.8 |
46.3 |
| 25 |
39.8 |
36.8 |
43.8 |
| 31.25 |
37.9 |
34.9 |
41.2 |
| 62.5 |
31.9 |
28.9 |
32 |
| 100 |
27.8 |
24.8 |
24.5 |
| 200 |
21.8 |
18.8 |
10.8 |
| 250 |
19.8 |
16.8 |
5.5 |
CONSTRUCTION PARAMETERS
| Cable Code |
Conductor Diameter |
Nominal Insulation Thickness |
Nominal Overall Diameter |
Approx.Weight |
| |
mm |
mm |
mm |
kg/km |
| CAT6UTP4P23FR |
0.58 |
0.4 |
6.8±1.0 |
66 |
