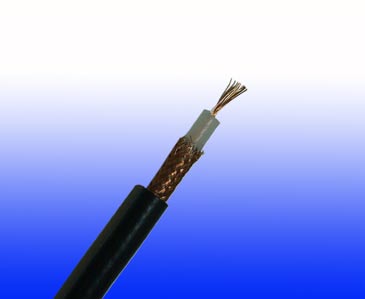

Flame Retardant RG11 A/U Coaxial Cables
APPLICATION
The cables are designed for CCTV, security, smoke detection and evacuation monitoring applications, where continued functionality is required during a fire situation. Due to the zero halogen low smoke construction, this cable is ideal for use in public, commercial and industrial environments.
STANDARDS
- Basic design adapted to MIL-C-17
FIRE PERFORMANCE
| Flame Retardance (Single Vertical Wire Test)** |
EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
| Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)** |
EN 60332-3-22 (cat. A); IEC 60332-3-22; BS EN 60332-3-22; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1);CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
Note: Asterisk ** denotes that the standard compliance is optional, depending on the oxygen index of the PVC compound and the cable design.

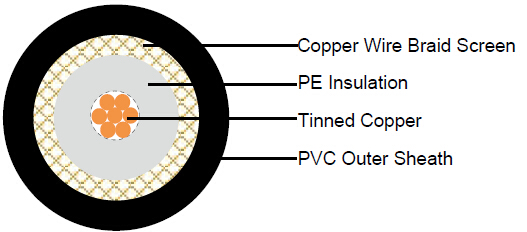

CABLE CONSTRUCTION
| Conductors |
Tinned copper wire, stranded according to IEC 60228 class 2 |
| Insulation |
PE compound |
| Overall Screen |
Plain copper wire braid |
| Outer Sheath |
Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request |
PHYSICAL AND THERMAL PROPERTIES
| Temperature Range During Operation (Fixed State) |
-30°C - +70°C |
| Temperature Range During Installation (Mobile State) |
-5°C - +60°C |
| Minimum Bending Radius |
8 X Overall Diameter |
ELECTRICAL PROPERTIES
| Impedance |
75±5Ω |
| Capacitance |
67 nF/km |
| Velocity ratio |
66% |
| Insulation resistance |
>2000 Mohm.Km |
| Shield coverage |
97% |
| DC resistance |
|
| Inner conductor |
20.5 Ω/km |
| Outer conductor |
4.5 Ω/km |
ATTENUATION
| Frequency |
Attenuation |
Attenuation |
| MHz |
dB/100 m |
dB/100ft |
| 50 |
4.2 |
1.28 |
| 100 |
6.2 |
1.89 |
| 200 |
9.3 |
2.84 |
| 400 |
13.8 |
4.21 |
| 500 |
15.5 |
4.73 |
| 600 |
17.1 |
5.21 |
| 860 |
20.1 |
6.13 |
| 1000 |
23.4 |
7.13 |
RETURN LOSS
| Frequency |
Return Loss |
| MHz |
dB |
| 30-300 |
>30 |
| 300-600 |
>27 |
| 600-900 |
>25 |
CONSTRUCTION PARAMETERS
| Cable Code |
Conductor Diameter |
Nominal Insulation Diameter |
Nominal Screen No.x Diameter |
Nominal Overall Diameter |
Approx. Weight |
| |
mm |
mm |
No. x mm |
mm |
kg/km |
| FGD RG11 A/U |
7 x 0.40 |
7.25 ± 0.18 |
192 x 0.18 |
10.3 ± 0.18 |
150 |
