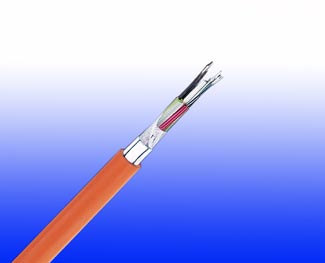

Flame Retardant Tight Buffered Distribution Fiber Optic Cables
MTA-B-C-D-Y
APPLICATION
This cables are used for interconnection of distribution boxes and end devices, where continued functionality is required during a fire situation. The cables are very suitable for various indoor and outdoor applications, including routing between buildings within ducts and inside building up to riser shafts.
 |
 |
STANDARDS
- Basic design adapted to Telcordia GR409-CORE/TIA/EIA 568B.3/ICEA-S-83-596
FIRE PERFORMANCE
| Flame Retardance (Single Vertical Wire Test)** | EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
| Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)** | EN 60332-3-22 (cat. A); IEC 60332-3-22; BS EN 60332-3-22; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1);CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
Note: Asterisk ** denotes that the standard compliance is optional, depending on the oxygen index of the PVC compound and the cable design.

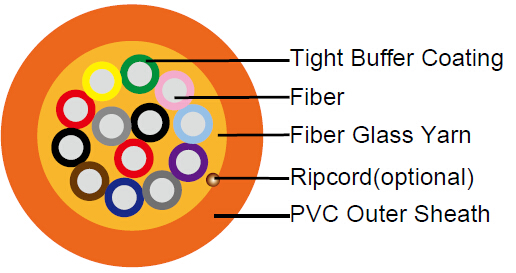

CABLE CONSTRUCTION
| Optical fibers | Singlemode and multimode tight fibers, with tight buffer coating |
| Reinforcement | Either aramid yarn or fiber glass is wound around the tube to provide physical protection and tensile strength, with added fire protection |
| Inner sheath (optional) | Thermoplastic PVC compound type LTS3 as per BS 7655-6.1 Ripcord(optional): An optional ripcord can be located under the outer sheath to facilitate jacket removal |
| Armouring(optional) | STA: Corrugated Steel Tape Armour |
| Outer Sheath | Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request |
PHYSICAL AND THERMAL PROPERTIES
| Temperature range during operation (fixed state) | -20°C - +60°C |
| Temperature range during installation (mobile state) | 0°C - +50°C |
| Minimum Operation Bending Radius | 10 times the outer diameter for unarmoured cables; 20 times the outer diameter for armoured cables |
| Minimum Installation Bending Radius | 20 times the outer diameter |
CONSTRUCTION PARAMETERS
| Cable Code | N° of Fibers | Nominal Overall Diameter | Max. Tensile Strength | Minimum ending adius | Approx.Weight |
|---|---|---|---|---|---|
| mm | N | mm | kg/km | ||
| MTA-B-2-0-Y | 2 | 7,6 | 250 | 76 | 55 |
| MTA-B-4-0-Y | 4 | 7,8 | 250 | 78 | 67 |
| MTA-B-6-0-Y | 6 | 8,6 | 400 | 86 | 77 |
| MTA-B-8-0-Y | 8 | 8,8 | 400 | 88 | 81 |
| MTA-B-12-0-Y | 12 | 9,3 | 400 | 93 | 90 |
