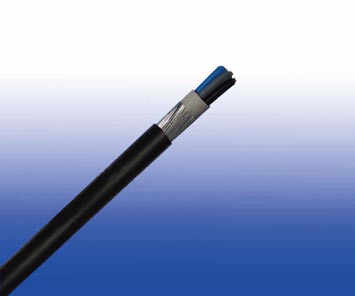

300/500V XLPE Insulated, Armoured PVC Sheathed Power Cables (2-4 Cores)

FGD200 05RVMV-R(CU/XLPE/PVC/SWA/PVC 300/500V Class 2)

APPLICATION

The cables are mainly used in power stations, mass transit underground passenger systems, airports, petrochemical plants, hotels, hospitals, and high-rise buildings.

images/300-500V XLPE Insulated, Armoured PVC Sheathed Power Cables (2-4 Cores).jpg images/300-500V Armoured PVC Sheathed Power Cables.jpg

STANDARDS

  • Basic design adapted to BS5467

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test)** EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)** EN 60332-3-22 (cat. A); IEC 60332-3-22; BS EN 60332-3-22; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1);CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4

Note: Asterisk ** denotes that the standard compliance is optional, depending on the oxygen index of the PVC compound and the cable design.

VOLTAGE RATING

300/500 V

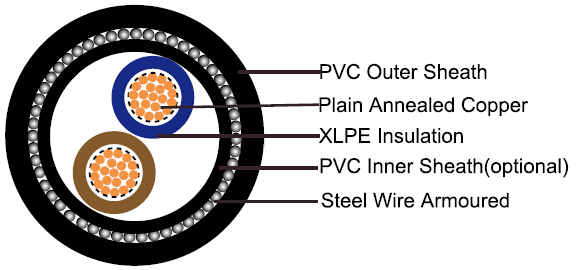

CABLE CONSTRUCTION

Conductor Plain annealed copper wire, stranded according to IEC 60228 class 2
Insulation Extruded cross-linked XLPE compound
Inner Sheath(optional) Thermoplastic PVC compound
Armouring Galvanized steel wire
Outer Sheath Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance,anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request

COLOUR CODE

Insulation Colour as per BS7671

With Earth Conductor Without Earth Conductor
2Cores - Brown, Blue
3Cores Yellow/Green, Brown, Blue Brown, Gray, Black
4Cores Yellow/Green, Brown, Gray, Black Brown, Gray, Black, Blue

Sheath Colour: Black (other colors upon request)

PHYSICAL AND THERMAL PROPERTIES

Maximum temperature range during operation (XLPE) 90°C
Maximum short circuit temperature (5 Seconds) 250°C
Minimum bending radius 10 x Overall Diameter

CONSTRUCTION PARAMETERS

Conductor FGD200 05RVMV-R
No. of Core X Cross Section No./Nominal Diameter of Strands Nominal Insulation Thickness Diameter Under Armour Armour Wire Diameter Nominal Overall Diameter Approx.Weight
Noxmm2 No./mm mm mm mm mm kg/km
2x1.5 7/0.53 0.50 6.5 0.9 11.2 246
2x2.5 7/0.67 0.50 7.3 0.9 12.0 292
2x4 7/0.85 0.50 8.4 0.9 13.1 360
3x1.5 7/0.53 0.50 6.9 0.9 11.6 275
3x2.5 7/0.67 0.50 7.8 0.9 12.5 331
3x4 7/0.85 0.50 9.0 0.9 13.7 413
4x1.5 7/0.53 0.50 7.6 0.9 12.3 309
4x2.5 7/0.67 0.50 8.6 0.9 13.3 380
4x4 7/0.85 0.50 9.9 0.9 14.6 479

ELECTRICAL PROPERTIES

Conductor Operating Temperature 70°C
Ambient Temperature 30°C

Current-Carrying Capacities (Amp)

Conductor cross-sectional area Reference Method C (clipped direct) Reference Method E (in free air or on a perforated cable tray, horizontal or vertical) Reference Method D (direct in in groud or in ducting in groud.in or around buildings)
1 two-core cable*, single-phase a.c. or d.c. 1 three-or four core cable*,three-phase a.c. 1 two-core cable*, single-phasea.c. or d.c. 1 three-or four core cable*,three-phase a.c. 1 two-core cable*, single-phase a.c. or d.c. 1 three-or fourcore cable*, three-phase a.c.
1 2 3 4 5 6 7
mm2 A A A A A A
1.5 27 23 29 25 25 21
2.5 36 31 39 33 33 28
4 49 42 52 44 43 36

Voltage Drop (Per Amp Per Meter)

Conductor cross-sectional area Two-core cables, d.c. Two-core cable, single-phase a.c. Three-or four core cable, three-phase a.c.
1 2 3 4
mm2 mV/A/m mV/A/m mV/A/m
1.5 31 31 27
2.5 19 19 16
4 12 12 10

Note: *Spacings larger than one cable diameter will result in a large voltage drop.
