Fire Retardant CAT5e Data Cables

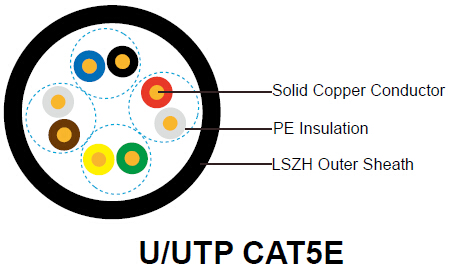

CAT5e U/UTP4P24LH

CAT5e F/UTP4P24LH

CAT5e SF /UTP4P24LH

APPLICATION

Cat5E is a cable standard for Gigabit Ethernet and other network protocol, suitable for basic voice and data installations up to 100 MHz. In addition, these cables can be offered with copper wire braid armoured & flame retardant outer sheath, providing additional mechanically protection still maintaining the flexibility of the cable.

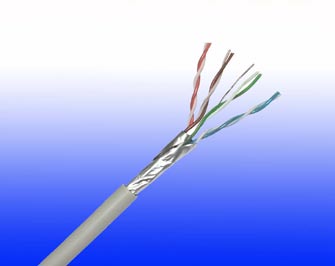

images/Fire Retardant CAT5e Data Cables.jpg images/CAT5e Data Cables .jpg

STANDARDS

  • Basic design to EN50173

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test) EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test) EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1);CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
Halogen Free IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1; BS 6425-1*
No Corrosive Gas Emission IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*
Minimum Smoke Emission IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*
No Toxic gases NES 02-713; NF C 20-454

Note: Asterisk * denotes superseded standard.

VOLTAGE RATING

110V

CABLE CONSTRUCTION

Conductors 24AWG solid bare copper
Insulation HDPE
Twinning Two coloured insulated conductors twisted together to form a pair
Outer Sheath Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655:section 2.6 can be offered.). UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option

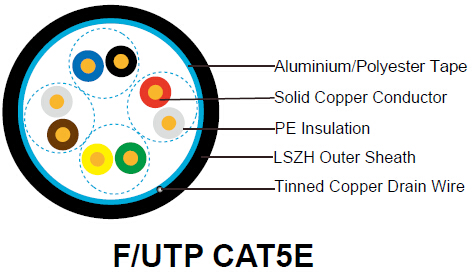

Cat5E F/UTP These cables have collective shielding of aluminium/Polyester tape with drain wire

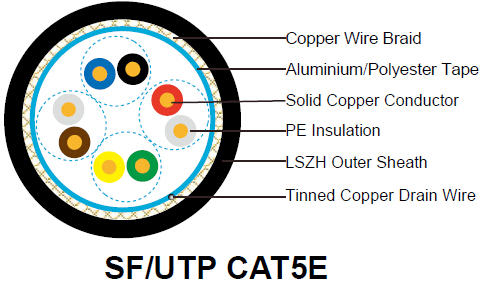

Cat5E SF/UTP These cables have double collective shieldings of aluminium/Polyester tape & copper wire braid

PHYSICAL AND THERMAL PROPERTIES

Temperature range -30°C – +75°C
Minimum bending radius during installation (mobile state) 8 x Overall Diameter
Minimum bending radius during operation (fixed state) 4 x Overall Diameter

ELECTRICAL PROPERTIES

AWG 24
Nominal Conductor Diameter mm 0.5/0.51/0.53
Maximum DC Resistant@20°C Ω/100m 9.38
Maximum DC Resistant Unbalance % 5
Maximum Mutual Capacitance pF/m 55.8
Maximum Capacitance Unbalance pF/100m 330
Characteristic Impedance@1-100MHz Ω 100±15
Maximum Propagation Delay Skew ns/100m 45

TRANSMISSION PROPERTIES

FREQ Maximum Attenuation Minimum NEXT Minimum PSNEXT Minimum ELFEXT Minimum PSELFEXT MinimumRL
MHz dB/100m dB dB dB/100m dB/100m dB
0.772 1.8 67.0 64.0 66.0 63.0
1 2.0 65.3 62.3 63.8 60.8 20.0
4 4.1 56.3 53.3 51.7 48.7 23.0
8 5.8 51.8 48.8 45.7 42.7 24.5
10 6.5 50.3 47.3 43.8 40.8 25.0
16 8.2 47.3 44.3 39.7 36.7 25.0
20 9.3 45.8 42.8 37.7 34.7 25.0
25 10.4 44.3 41.3 35.8 32.8 24.3
31.25 11.7 42.9 39.9 33.9 30.9 23.6
62.5 17.0 38.4 35.4 27.8 24.8 21.5
100 22.0 35.3 32.3 23.8 20.8 20.1
../../Fire Retardant LSOH Sheathed Cables(FIRETOX)/Fire Retardant Data & Databus Cables/images/F-UTP CAT5E.jpg ../../Fire Retardant LSOH Sheathed Cables(FIRETOX)/Fire Retardant Data & Databus Cables/images/SF-UTP CAT5E.jpg

CONSTRUCTION PARAMETERS

Cable Code Conductor Diameter Diameter Over Insulation Pairs Screen Nominal Overall Diameter
  mm mm mm mm
CAT5E U/UTP4P24LH 0.5/0.51 0.91 4 Nil 5.1
CAT5E F/UTP4P24LH 0.53 1.00 4 Overall Aluminum Tape Screen 6.3
CAT5E SF/UTP4P24LH 0.53 1.00 4 Overall Aluminum Tape Screen & Copper Wire Braid 6.6
