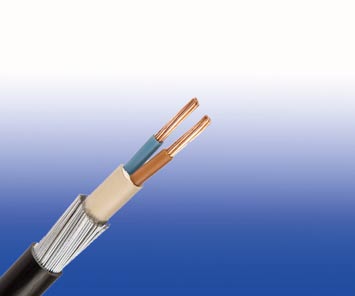

300/500V XLPE Insulated, Armoured LSZH Sheathed Power Cables (2-4 Cores)

FTX200 05RZ1MZ1-R (CU/XLPE/LSZH/SWA/LSZH 300/500V Class 2)

APPLICATION

The cables are mainly used in power stations, mass transit underground passenger systems, airports, petrochemical plants, hotels, hospitals, and high-rise buildings.

images/300/500V XLPE Insulated, Armoured LSZH Sheathed Power Cables (2-4 Cores).jpg images/Armoured LSZH Sheathed Power Cables.jpg

STANDARDS

  • Basic design adapted to IEC 7624

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test) EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test) EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
Halogen Free IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1; BS 6425-1*
No Corrosive Gas Emission IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*
Minimum Smoke Emission IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*
No Toxic gases NES 02-713; NF C 20-454

Note: Asterisk * denotes superseded standard.

VOLTAGE RATING

300/500 V

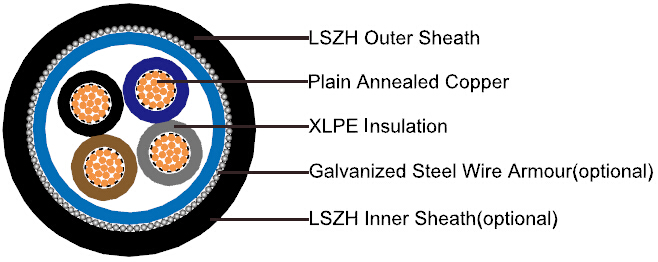

CABLE CONSTRUCTION

Conductor: Plain annealed copper wire, stranded according to IEC 60228 class 2.
Insulation: Extruded XLPE compound.
Inner Sheath(optional): Thermoplastic LSZH Compound.
Armouring: Galvanized steel wire.
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option.

Conductor Plain annealed copper wire, stranded according to IEC 60228 class 2
Insulation Extruded XLPE compound
Inner Sheath(optional) Thermoplastic LSZH compound
Armouring Galvanized steel wire
Outer Sheath Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option

COLOUR CODE

Insulation Colour as per BS7671

  With Earth Conductor Without Earth Conductor

2 Cores

-

Brown, Blue

3 Cores

Yellow/Green, Brown, Blue

Brown, Grey, Black

4 Cores

Yellow/Green, Brown, Grey, Black

Brown, Grey, Black, Blue

Sheath Colour: Black (other colors upon request)

PHYSICAL AND THERMAL PROPERTIES

Maximum temperature range during operation (XLPE) 90°C
Maximum short circuit temperature (5 Seconds) 250°C
Minimum bending radius 10 x Overall Diameter

CONSTRUCTION PARAMETERS

Conductor FTX200 05RZ1MZ1-R
No. of Core X Cross Section No./Nominal Diameter of Strands Nominal Insulation Thickness Diameter Under Armour Armour Wire Diameter Nominal Overall Diameter Approx. Weight
Noxmm2 No./mm mm mm mm mm kg/km
2x1.5 7/0.53 0.50 6.5 0.9 11.2 246
2x2.5 7/0.67 0.50 7.3 0.9 12.0 292
2x4.0 7/0.85 0.50 8.4 0.9 13.1 360
3x1.5 7/0.53 0.50 6.9 0.9 11.6 275
3x2.5 7/0.67 0.50 7.8 0.9 12.5 331
3x4.0 7/0.85 0.50 9.0 0.9 13.7 413
4x1.5 7/0.53 0.50 7.6 0.9 12.3 309
4x2.5 7/0.67 0.50 8.6 0.9 13.3 380
4x4.0 7/0.85 0.50 9.9 0.9 14.6 479

ELECTRICAL PROPERTIES

Conductor Operating Temperature 90°C
Ambient Temperature 30°C

Current-Carrying Capacities (Amp)

Conductor cross-sectional area Reference Method C (clipped direct) Reference Method E (in free air or on a perforated cable tray, horizontal or vertical) Reference Method D (direct in in groud or in ducting in groud.in or around buildings)
1 two-core cable*, single-phase a.c. or d.c. 1 three-or four core cable*,three-phase a.c. 1 two-core cable*, single-phasea.c. or d.c. 1 three-or four core cable*,three-phase a.c. 1 two-core cable*, single-phase a.c. or d.c. 1 three-or fourcore cable*, three-phase a.c.
1 2 3 4 5 6 7
mm2 A A A A A A
1.5 27 23 29 25 25 21
2.5 36 31 39 33 33 28
4.0 49 42 52 44 43 36

Voltage Drop (Per Amp Per Meter)

Conductor cross-sectional area Two-core cables, d.c. Two-core cable, single-phase a.c. Three-or four core cable,three-phase a.c.
1 2 3 4
mm2 mV/A/m mV/A/m mV/A/m
1.5 31 31 27
2.5 19 19 16
4.0 12 12 10
