Type 210 1.1/1.1KV
Applications
These cables are mainly used for hand-held boring machines and drills.
Standards
- AS/NZS 1802:2003
- AS/NZS 1125
- AS/NZS 3808
- AS/NZS 5000.1
|
 |

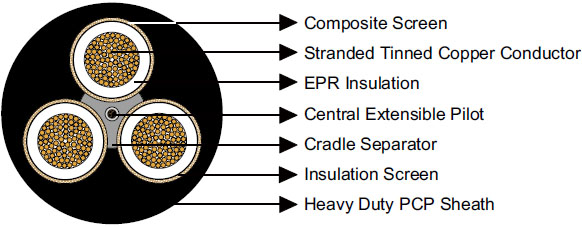

Construction
| 3×Conductors |
Flexible stranded tinned annealed copper conductor. |
| Insulation |
EPR. |
| Insulation Screen |
Semiconductive elastomer. |
| Composite Screen (earth conductor) |
Tinned annealed copper braiding interwove with polyester yarn. |
| Cradle Separator |
Semiconductive PCP. |
| 1×Central Extensible Pilot |
EPR covered flexible stranded tinned copper conductor. |
| Sheath |
Heavy duty PCP sheath. Heavy duty CPE/CSP sheath can be offered upon request. |
Dimensions and Weight
| Nominal Conductor Area |
Strand Size |
Insulation Thickness |
Core Screen |
Pilot Conductor |
Thickness of Sheath |
Nominal Overall Diameter |
Nominal Weight |
| Strand Size |
Area of Screen |
Strand Size |
Thickness of Covering |
| mm^2 |
No/mm |
mm |
No/mm |
mm^2 |
No/mm |
mm |
mm |
mm |
kg/100m |
| Type 210 |
| 1.5 |
30/0.25 |
1.4 |
7/0.25 |
5.2 |
24/0.20 |
0.8 |
3.0 |
23.7 |
83 |
| 2.5 |
50/0.25 |
1.5 |
7/0.25 |
5.8 |
24/0.20 |
0.8 |
3.0 |
25.1 |
92 |
