Type 441 (class 2) 1.1/1.1KV
Applications
These Class 2 cables are designed for many uses, suitable for trailing and also suitable for reeling applications, have one central pilot and a semiconductive cradle supporting and protecting the power cores, which makes these cables less likely to be damaged from crushing and squashing.
Standards
- AS/NZS 2802:2000
- AS/NZS 1125
- AS/NZS 3808
- AS/NZS 5000.1
|
 |

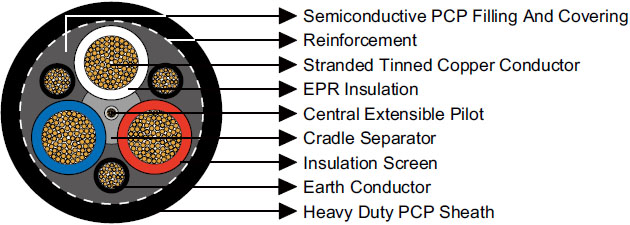

Construction
| 3×Conductors |
Flexible stranded tinned annealed copper conductor. |
| Insulation |
EPR. |
| Insulation Screen |
Semiconductive elastomer. |
| Cradle Separator |
Semiconductive PCP. |
| Overall Core Screen |
Semiconductive PCP filling and covering. |
| 3×Interstitial Earth Conductor |
Semiconductive PCP covered flexible stranded tinned copper conductor. |
| 1×Central Extensible Pilot |
EPR covered flexible stranded tinned copper conductor. |
| Textile Reinforcement |
Open-weave braid reinforcement. |
| Sheath |
Heavy duty PCP sheath. Heavy duty CPE/CSP sheath can be offered upon request. |
Dimensions and Weight
| Nominal Conductor Area |
Strand Size |
Insulation Thickness |
Earth Conductor |
Pilot Conductor |
Thickness of Sheath |
Nominal Overall Diameter |
Nominal Weight |
| Strand Size |
Thickness of Covering |
Strand Size |
Thickness of Covering |
| mm^2 |
No/mm |
mm |
No/mm |
mm^2 |
No/mm |
mm |
mm |
mm |
kg/100m |
| Type 441.1 Class2 |
| 6 |
84/0.30 |
1.5 |
33/0.30 |
0.8 |
24/0.20 |
0.8 |
3.8 |
28.5 |
111 |
| 10 |
77/0.40 |
1.5 |
51/0.30 |
0.8 |
24/0.20 |
0.8 |
3.8 |
31.1 |
136 |
| 16 |
126/0.40 |
1.6 |
81/0.30 |
1.0 |
24/0.20 |
0.8 |
3.9 |
34.1 |
176 |
| 25 |
209/0.40 |
1.6 |
81/0.30 |
1.0 |
24/0.20 |
0.8 |
4.2 |
37.9 |
231 |
| 35 |
285/0.40 |
1.6 |
81/0.30 |
1.0 |
24/0.20 |
0.8 |
4.4 |
41.2 |
274 |
| 50 |
380/0.40 |
1.7 |
120/0.30 |
1.0 |
40/0.20 |
0.8 |
4.9 |
45.9 |
349 |
| 70 |
203/0.67 |
1.8 |
39/0.67 |
1.0 |
40/0.20 |
0.8 |
5.3 |
52.2 |
481 |
| 95 |
259/0.67 |
2.0 |
48/0.67 |
1.0 |
40/0.20 |
0.8 |
5.8 |
56.7 |
579 |
| 120 |
336/0.67 |
2.1 |
60/0.67 |
1.0 |
40/0.20 |
0.8 |
6.3 |
62.7 |
724 |
| 150 |
427/0.67 |
2.3 |
77/0.67 |
1.2 |
40/0.20 |
0.8 |
6.7 |
68.3 |
881 |
| 185 |
518/0.67 |
2.5 |
91/0.67 |
1.2 |
40/0.20 |
0.8 |
7.3 |
74.9 |
1049 |
| 240 |
672/0.67 |
2.8 |
119/0.67 |
1.2 |
40/0.20 |
0.8 |
8.0 |
83.3 |
1329 |
| 300 |
854/0.67 |
3.0 |
156/0.67 |
1.4 |
40/0.20 |
0.8 |
8.7 |
91.2 |
1629 |
