Type MP-GC Three-Conductor Mine Power Feeder Cable, PVC Jacket, 5kV

Applications

These cables are designed for connections between units of mine distribution systems, suitable for direct burial in wet and dry locations.

Standards

  • ICEA S-75-381/NEMA WC 58
  • ASTM B-8
  • CAN/CSA C22.2 No. 96

Construction

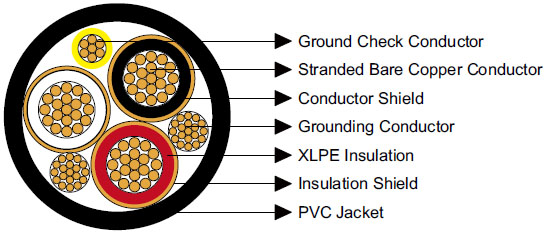

Type MP-GC Three-Conductor Mine Power Feeder Cable, PVC Jacket, 5kV
Conductors Stranded annealed bare copper conductor.
Conductor Shield Conducting layer.
Insulation Cross-Linked Polyethylene (XLPE).
Insulation Shield Conducting layer + copper tape.
Ground Check Conductor Copper conductor with a yellow polypropylene insulation.
Grounding Conductor Tinned copper conductor
Jacket Polyvinyl Chloride (PVC), black.

Options

Other jacket materials such as CSP/PCP/NBR/CPE/TPU are available upon request.

Mechanical and Thermal Properties

Minimum Bending Radius 12×OD
Maximum Conductor Operating Temperature +90℃

Dimensions and Weight

Construction No. of Strands Grounding Conductor Size Ground Check Conductor Size Nominal Insulation Thickness Nominal Jacket Thickness Nominal Overall Diameter Height×Width Nominal Weight Ampacity
No. of cores × AWG/kcmil - AWG/kcmil AWG/kcmil inch mm inch mm inch mm lbs/kft kg/km A
3×4 7 8 8 0.09 2.3 0.11 2.8 1.41 35.8 1224 1821 122
3×2 7 6 8 0.09 2.3 0.11 2.8 1.47 37.3 1653 2459 159
3×1 19 5 8 0.09 2.3 0.11 2.8 1.54 39.1 1950 2901 184
3×1/0 19 4 8 0.09 2.3 0.11 2.8 1.63 41.4 2200 3273 211
3×2/0 19 3 8 0.09 2.3 0.11 2.8 1.72 43.7 2721 4048 243
3×3/0 19 2 8 0.09 2.3 0.14 3.6 1.89 48.0 3170 4720 279
3×4/0 19 1 8 0.09 2.3 0.14 3.6 2.01 51.0 3845 5721 321
3×250 37 1/0 8 0.09 2.3 0.14 3.6 2.10 53.3 4321 6429 355
3×350 37 2/0 8 0.09 2.3 0.14 3.6 2.31 58.7 5652 8409 435
3×500 37 4/0 8 0.09 2.3 0.14 3.6 2.59 65.8 7721 11487 536

Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
