0.6/1kV HF-EPR Insulated, SW2/SW4 Sheathed Armoured Flame Retardant Power & Control Cables
Applications
These elastomeric insulated cables are designed for fixed wiring in ships and on mobile offshore units, suitable for use in power and control applications.
Standards
- BS 6883
- IEC 60332-3A Flame retardant
- IEC 60754-1; IEC 60754-2 Corrosivity
- IEC 61034-2 Smoke density
- Cold bend and impact (-40°C) (on request)
- CSA C22.2 No. 38-95 (on request)

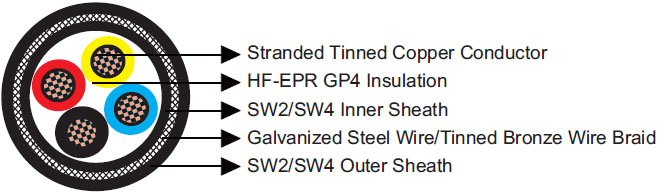

Construction
| Conductor |
Tinned copper wire stranded circular cl. 2 BS 6360/IEC 60228 |
| Insulation |
HF-EPR GP4 according to BS 7655 1.2. |
| Inner Sheath |
Halogen free thermosetting compound SW4 according to BS 7655 2.6 or reduced halogen thermosetting compound SW2 according to BS 7655 2.6. |
| Armour |
Galvanized steel wire braid or tinned bronze wire braid (single core). Copper wire braid can be offered upon request. |
| Outer Sheath |
Halogen free thermosetting compound SW4 according to BS 7655 2.6 or reduced halogen thermosetting compound SW2 according to BS 7655 2.6. |
Mechanical and Thermal Properties
| Minimum Internal Bending Radius |
6×OD (OD>25mm) |
| |
4×OD (OD ≤25mm) |
| Temperature Range |
-40°C ~ +90°C |
Dimensions and Weight
Single core cables
| Construction No. of cores×Cross section |
Nominal Insulation Thickness |
Nominal Inner Sheath Thickness |
Minimum Diameter Over Inner Sheath |
Maximum Diameter Over Inner Sheath |
Nominal Armour Wire Diameter |
Nominal Outer Sheath Thickness |
Minimum Overall Diameter |
Maximum Overall Diameter |
Approx. Weight |
| mm^2 |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
| 1×4 |
1.0 |
1.0 |
6.3 |
7.6 |
0.3 |
1.1 |
9.8 |
11.7 |
220 |
| 1×6 |
1.0 |
1.0 |
6.8 |
8.1 |
0.3 |
1.1 |
10.4 |
12.2 |
250 |
| 1×10 |
1.0 |
1.0 |
7.7 |
9.1 |
0.3 |
1.2 |
11.5 |
13.4 |
310 |
| 1×16 |
1.0 |
1.1 |
8.9 |
10.3 |
0.3 |
1.2 |
12.7 |
14.6 |
400 |
| 1×25 |
1.2 |
1.2 |
11.1 |
12.8 |
0.3 |
1.3 |
15.0 |
17.3 |
570 |
| 1×35 |
1.2 |
1.2 |
12.0 |
13.7 |
0.3 |
1.4 |
16.1 |
18.4 |
660 |
| 1×50 |
1.4 |
1.3 |
13.7 |
15.5 |
0.3 |
1.4 |
17.9 |
20.2 |
870 |
| 1×70 |
1.4 |
1.3 |
15.5 |
17.4 |
0.3 |
1.5 |
19.8 |
22.6 |
1110 |
| 1×95 |
1.6 |
1.4 |
17.7 |
19.8 |
0.3 |
1.6 |
22.2 |
25.2 |
1460 |
| 1×120 |
1.6 |
1.5 |
19.6 |
22.0 |
0.3 |
1.7 |
24.3 |
27.3 |
1770 |
| 1×150 |
1.8 |
1.6 |
21.6 |
24.2 |
0.3 |
1.8 |
26.5 |
29.7 |
2110 |
| 1×185 |
2.0 |
1.7 |
24.0 |
26.6 |
0.45 |
1.9 |
29.8 |
33.5 |
2720 |
| 1×240 |
2.2 |
1.8 |
27.1 |
29.9 |
0.45 |
2.0 |
33.1 |
36.9 |
3410 |
| 1×300 |
2.4 |
1.9 |
30.0 |
33.2 |
0.45 |
2.1 |
36.2 |
40.1 |
4180 |
Multicore cables
| Construction No. of cores×Cross section |
Nominal Insulation Thickness |
Nominal Inner Sheath Thickness |
Minimum Diameter Over Inner Sheath |
Maximum Diameter Over Inner Sheath |
Nominal Armour Wire Diameter |
Nominal Outer Sheath Thickness |
Minimum Overall Diameter |
Maximum Overall Diameter |
Approx. Weight |
| mm^2 |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
| 2×1 |
0.8 |
1.0 |
7.5 |
8.8 |
0.3 |
1.2 |
11.3 |
13.1 |
230 |
| 2×1.5 |
0.8 |
1.1 |
8.2 |
9.6 |
0.3 |
1.2 |
12.0 |
13.9 |
270 |
| 2×2.5 |
0.8 |
1.1 |
9.0 |
10.4 |
0.3 |
1.2 |
12.8 |
14.7 |
320 |
| 2×4 |
1.0 |
1.2 |
11.0 |
12.7 |
0.3 |
1.3 |
15.0 |
17.2 |
430 |
| 2×6 |
1.0 |
1.2 |
12.1 |
13.8 |
0.3 |
1.4 |
16.3 |
18.5 |
530 |
| 2×10 |
1.0 |
1.3 |
14.1 |
15.9 |
0.3 |
1.4 |
18.2 |
20.6 |
660 |
| 2×16 |
1.0 |
1.4 |
16.3 |
18.3 |
0.3 |
1.5 |
20.6 |
23.5 |
840 |
| 2×25 |
1.2 |
1.5 |
20.4 |
22.9 |
0.3 |
1.7 |
25.2 |
28.2 |
1310 |
| 2×35 |
1.2 |
1.6 |
22.4 |
24.9 |
0.3 |
1.8 |
27.3 |
30.4 |
1600 |
| 2×50 |
1.4 |
1.7 |
25.7 |
28.4 |
0.45 |
2.0 |
31.7 |
35.5 |
2240 |
| 2×70 |
1.4 |
1.9 |
29.6 |
32.7 |
0.45 |
2.1 |
35.8 |
39.7 |
2900 |
| 2×95 |
1.6 |
2.1 |
34.1 |
37.4 |
0.45 |
2.3 |
40.7 |
45.2 |
3860 |
| 2×120 |
1.6 |
2.2 |
37.7 |
41.1 |
0.45 |
2.5 |
44.6 |
49.3 |
4650 |
| 3×1 |
0.8 |
1.1 |
8.2 |
9.5 |
0.3 |
1.2 |
11.9 |
13.8 |
250 |
| 3×1.5 |
0.8 |
1.1 |
8.7 |
10.1 |
0.3 |
1.2 |
12.5 |
14.4 |
305 |
| 3×2.5 |
0.8 |
1.1 |
9.6 |
11.0 |
0.3 |
1.3 |
13.5 |
15.5 |
360 |
| 3×4 |
1.0 |
1.2 |
11.7 |
13.4 |
0.3 |
1.3 |
15.7 |
17.9 |
495 |
| 3×6 |
1.0 |
1.2 |
12.9 |
14.7 |
0.3 |
1.4 |
17.0 |
19.4 |
600 |
| 3×10 |
1.0 |
1.3 |
15.0 |
17.0 |
0.3 |
1.5 |
19.4 |
22.2 |
810 |
| 3×16 |
1.0 |
1.4 |
17.4 |
19.4 |
0.3 |
1.6 |
21.9 |
24.8 |
1070 |
| 3×25 |
1.2 |
1.6 |
22.0 |
24.6 |
0.3 |
1.8 |
26.9 |
30.1 |
1620 |
| 3×35 |
1.2 |
1.7 |
24.1 |
26.7 |
0.45 |
1.9 |
29.9 |
33.6 |
2130 |
| 3×50 |
1.4 |
1.8 |
27.7 |
30.5 |
0.45 |
2.0 |
33.7 |
37.5 |
2750 |
| 3×70 |
1.4 |
2.0 |
31.8 |
35.1 |
0.45 |
2.2 |
38.2 |
42.2 |
3660 |
| 3×95 |
1.6 |
2.2 |
36.7 |
40.1 |
0.45 |
2.4 |
43.5 |
48.1 |
4740 |
| 3×120 |
1.6 |
2.3 |
40.5 |
44.4 |
0.45 |
2.6 |
47.7 |
52.5 |
5950 |
| 3×150 |
1.8 |
2.5 |
44.9 |
49.0 |
0.45 |
2.8 |
52.5 |
57.8 |
7120 |
| 3×185 |
2.0 |
2.7 |
50.1 |
54.6 |
0.45 |
3.0 |
58.0 |
64.0 |
8820 |
| 3×240 |
2.2 |
2.9 |
56.7 |
61.5 |
0.45 |
3.2 |
65.0 |
71.3 |
11280 |
| 3×300 |
2.4 |
3.2 |
63.1 |
68.6 |
0.45 |
3.5 |
72.0 |
79.0 |
13640 |
| 4×1 |
0.8 |
1.1 |
8.9 |
10.3 |
0.3 |
1.2 |
12.6 |
14.6 |
280 |
| 4×1.5 |
0.8 |
1.1 |
9.5 |
10.9 |
0.3 |
1.3 |
13.5 |
15.4 |
350 |
| 4×2.5 |
0.8 |
1.1 |
10.5 |
12.1 |
0.3 |
1.3 |
14.4 |
16.4 |
410 |
| 4×4 |
1.0 |
1.2 |
12.9 |
14.6 |
0.3 |
1.4 |
17.0 |
19.3 |
570 |
| 4×6 |
1.0 |
1.3 |
14.4 |
16.2 |
0.3 |
1.5 |
18.7 |
21.1 |
730 |
| 4×10 |
1.0 |
1.4 |
16.7 |
18.7 |
0.3 |
1.6 |
21.3 |
24.1 |
990 |
| 4×16 |
1.0 |
1.5 |
19.4 |
21.8 |
0.3 |
1.7 |
24.1 |
27.1 |
1330 |
| 4×25 |
1.2 |
1.7 |
24.5 |
27.1 |
0.45 |
1.9 |
30.3 |
34.0 |
2150 |
| 4×35 |
1.2 |
1.8 |
26.8 |
29.5 |
0.45 |
2.0 |
32.8 |
36.6 |
2600 |
| 4×50 |
1.4 |
1.9 |
30.8 |
34.0 |
0.45 |
2.2 |
37.2 |
41.2 |
3410 |
| 4×70 |
1.4 |
2.1 |
35.4 |
38.8 |
0.45 |
2.4 |
42.2 |
46.7 |
4530 |
| 4×95 |
1.6 |
2.3 |
40.8 |
44.7 |
0.45 |
2.6 |
47.9 |
52.7 |
5940 |
| 4×120 |
1.6 |
2.5 |
45.2 |
49.3 |
0.45 |
2.8 |
52.8 |
58.2 |
7390 |
| 4×150 |
1.8 |
2.7 |
50.1 |
54.7 |
0.45 |
3.0 |
58.1 |
64.1 |
8700 |
| 4×185 |
2.0 |
2.9 |
55.8 |
60.7 |
0.45 |
3.2 |
64.1 |
70.4 |
10780 |
| 4×240 |
2.2 |
3.2 |
63.4 |
68.9 |
0.45 |
3.5 |
72.3 |
79.3 |
13840 |
| 5×1.5 |
0.8 |
1.1 |
10.4 |
12.0 |
0.3 |
1.3 |
14.3 |
16.3 |
395 |
| 7×1.5 |
0.8 |
1.2 |
11.5 |
13.2 |
0.3 |
1.3 |
15.4 |
17.7 |
460 |
| 12×1.5 |
0.8 |
1.3 |
15.2 |
17.2 |
0.3 |
1.5 |
19.6 |
22.4 |
680 |
| 19×1.5 |
0.8 |
1.4 |
18.0 |
20.1 |
0.3 |
1.6 |
22.5 |
25.5 |
930 |
| 27×1.5 |
0.8 |
1.6 |
21.9 |
24.5 |
0.3 |
1.8 |
26.8 |
30.0 |
1270 |
| 37×1.5 |
0.8 |
1.7 |
24.7 |
27.3 |
0.3 |
1.9 |
30.5 |
34.2 |
1740 |
| 5×2.5 |
0.8 |
1.2 |
11.7 |
13.3 |
0.3 |
1.3 |
15.6 |
17.8 |
480 |
| 7×2.5 |
0.8 |
1.2 |
12.7 |
14.4 |
0.3 |
1.4 |
16.8 |
19.1 |
570 |
| 12×2.5 |
0.8 |
1.4 |
17.1 |
19.1 |
0.3 |
1.6 |
21.6 |
24.5 |
880 |
| 19×2.5 |
0.8 |
1.5 |
20.2 |
22.7 |
0.3 |
1.7 |
24.9 |
28.0 |
1220 |
