A-2Y2YB2Y S(H115)/S(H145)/S(H95)
Application
The cables are designed in railways signalling networks, and are suitable for installation in ducts or laying directly into the ground.
Reference Standards
- Dlk 1.013.107y
- Dlk 1.013.108y (for 1.4/1.8mm conductor H95 type)
- Dlk 1.013.110y

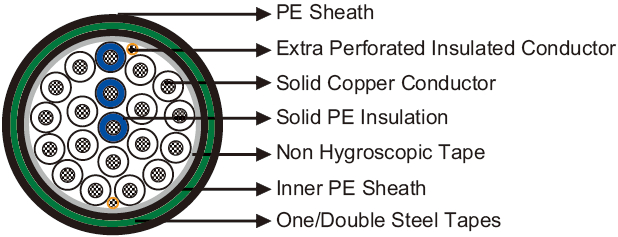

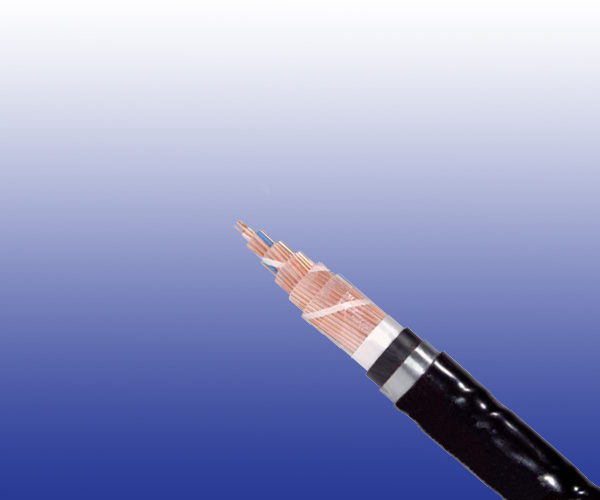

Cable Construction
| Conductors |
Solid annealed copper, 0.9, 1.4 or 1.8 mm nominal diameter. |
| Insulation |
Solid polyethylene. |
| Stranding |
Single conductors are helically stranded in concentric layers. Cables from 14 conductors on have two extra conductors of 0.5mm with perforated insulation (surveillance conductors). |
| Core Wrapping |
Plastic tape(s) with overlapping. |
| Inner Sheath |
Low density polyethylene. |
| Armouring |
One layer of galvanized steel tape (0.2-0.3mm) or two layers of galvanized steel tapes (0.1mm). |
| Outer Sheath |
Low density polyethylene. |
Type Codes
| AJ- |
outdoor cable with protection against inductive infl uences |
| 2Y |
solid PE conductor insulation |
| 2Y |
inner PE sheath |
| B |
steel tape armor |
| 2Y |
outer PE sheath |
| S |
signal cable |
| LG |
layer stranding |
| H (n) |
operating capacity |
Electrical Characteristics at 20℃
| Nominal Conductor Diameter |
mm |
0.9 |
1.4 |
1.8 |
| Maximum Conductor Resistance |
Ω/km |
28.9 |
11.9 |
7.2 |
| Minimum Insulation Resistance @500 V DC (1min) |
MΩ.km |
10000 |
10000 |
10000 |
| Maximum Conductor Capacitance @800Hz (AC) |
nF/km |
115 |
145/95* |
145/95* |
| Dielectric Strength, conductor to conductor (DC voltage 1min) |
V |
3535 |
3535 |
3535 |
| Surveillance Conductors |
|
|
|
|
| Loop resistance, maximum |
Ω/km |
190 |
190 |
190 |
| Insulation resistance |
|
|
|
|
| - dry cable core, minimum |
MΩ.km |
1000 |
1000 |
1000 |
| - wet cable core, maximum |
KΩ.km |
30 |
30 |
30 |
| Operating Voltage AC/DC |
V |
420/600 |
420/600 |
420/600 |
| Test Voltage@50 Hz 1 min |
|
|
|
|
| Core to Core |
Veff |
2500 |
2500 |
2500 |
| Core to Screen |
Veff |
2500 |
2500 |
2500 |
*The value“ 95” is only for cables with 1.4/1.8mm conductors according to Dlk 1.013.108y.
Mechanical and Thermal Properties
| Minimum Bending Radius |
10×OD |
| Temperature Range |
-40℃ to +60℃ (during operation); -10℃ +60℃ (during installation) |
Dimensions and Weight
A-2Y2YB2Y n×1× 0.9 S(H115)
| Cable Code |
Number of conductors |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Nominal Weight |
| Inner |
Outer |
| (n) |
mm |
mm |
mm |
kg/km |
| 0.9mm Conductor, 1.55mm Insulated Wire |
| RS107y-2Y2YB2Y-2C0.9-S(H115) |
2 |
1.3 |
1.2 |
12.0 |
120 |
| RS107y-2Y2YB2Y-4C0.9-S(H115) |
4 |
1.3 |
1.2 |
13.0 |
140 |
| RS107y-2Y2YB2Y-7C0.9-S(H115) |
7 |
1.3 |
1.2 |
14.0 |
170 |
| RS107y-2Y2YB2Y-10C0.9-S(H115) |
10 |
1.3 |
1.2 |
15.5 |
220 |
| RS107y-2Y2YB2Y-14C0.9-S(H115) |
14 |
1.3 |
1.2 |
16.0 |
260 |
| RS107y-2Y2YB2Y-20C0.9-S(H115) |
20 |
1.3 |
1.2 |
17.0 |
320 |
| RS107y-2Y2YB2Y-24C0.9-S(H115) |
24 |
1.3 |
1.2 |
19.0 |
370 |
| RS107y-2Y2YB2Y-30C0.9-S(H115) |
30 |
1.3 |
1.2 |
19.0 |
410 |
| RS107y-2Y2YB2Y-40C0.9-S(H115) |
40 |
1.3 |
1.2 |
20.0 |
500 |
| RS107y-2Y2YB2Y-50C0.9-S(H115) |
50 |
1.3 |
1.2 |
22.0 |
590 |
| RS107y-2Y2YB2Y-60C0.9-S(H115) |
60 |
1.3 |
1.2 |
23.0 |
680 |
| RS107y-2Y2YB2Y-80C0.9-S(H115) |
80 |
1.3 |
1.2 |
25.0 |
840 |
| RS107y-2Y2YB2Y-100C0.9-S(H115) |
100 |
1.3 |
1.3 |
28.0 |
1020 |
| RS107y-2Y2YB2Y-120C0.9-S(H115) |
120 |
1.3 |
1.3 |
29.0 |
1180 |
| RS107y-2Y2YB2Y-140C0.9-S(H115) |
140 |
1.3 |
1.3 |
31.0 |
1360 |
A-2Y2YB2Y n×1×1.4/1.8 S(H145)
| Cable Code |
Number of conductors |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Nominal Weight |
| Inner |
Outer |
| (n) |
mm |
mm |
mm |
kg/km |
| 1.4mm Conductor, 2.2mm Insulated Wire |
| RS107y-2Y2YB2Y-4C1.4-S(H145) |
4 |
1.3 |
1.2 |
14.0 |
190 |
| RS107y-2Y2YB2Y-7C1.4-S(H145) |
7 |
1.3 |
1.2 |
15.5 |
260 |
| RS107y-2Y2YB2Y-10C1.4-S(H145) |
10 |
1.3 |
1.2 |
18.0 |
340 |
| RS107y-2Y2YB2Y-14C1.4-S(H145) |
14 |
1.3 |
1.2 |
19.0 |
420 |
| RS107y-2Y2YB2Y-20C1.4-S(H145) |
20 |
1.3 |
1.2 |
21.0 |
550 |
| RS107y-2Y2YB2Y-24C1.4-S(H145) |
24 |
1.3 |
1.2 |
22.0 |
630 |
| RS107y-2Y2YB2Y-30C1.4-S(H145) |
30 |
1.3 |
1.2 |
23.0 |
750 |
| RS107y-2Y2YB2Y-40C1.4-S(H145) |
40 |
1.3 |
1.2 |
25.0 |
940 |
| RS107y-2Y2YB2Y-50C1.4-S(H145) |
50 |
1.3 |
1.3 |
28.0 |
1140 |
| RS107y-2Y2YB2Y-60C1.4-S(H145) |
60 |
1.3 |
1.3 |
30.0 |
1320 |
| 1.8mm Conductor, 2.7mm Insulated Wire |
| RS107y-2Y2YB2Y-4C1.8-S(H145) |
4 |
1.3 |
1.2 |
15.5 |
250 |
| RS107y-2Y2YB2Y-7C1.8-S(H145) |
7 |
1.3 |
1.2 |
17.0 |
350 |
| RS107y-2Y2YB2Y-10C1.8-S(H145) |
10 |
1.3 |
1.2 |
20.0 |
470 |
| RS107y-2Y2YB2Y-14C1.8-S(H145) |
14 |
1.3 |
1.2 |
21.0 |
600 |
| RS107y-2Y2YB2Y-20C1.8-S(H145) |
20 |
1.3 |
1.2 |
24.0 |
800 |
| RS107y-2Y2YB2Y-24C1.8-S(H145) |
24 |
1.3 |
1.2 |
26.0 |
910 |
| RS107y-2Y2YB2Y-30C1.8-S(H145) |
30 |
1.3 |
1.2 |
27.0 |
1100 |
| RS107y-2Y2YB2Y-40C1.8-S(H145) |
40 |
1.3 |
1.2 |
30.0 |
1400 |
A-2Y2YB2Y n×1×1.4 S(H95)
| Cable Code |
Number of conductors |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Nominal Weight |
| (n) |
mm |
mm |
kg/km |
| 1.4mm Conductor, 2.7mm Insulated Wire |
| RS108y-2Y2Yv-10C1.4-S(H95) |
10 |
2.0 |
16.0 |
270 |
| RS108y-2Y2Yv-14C1.4-S(H95) |
14 |
2.0 |
18.0 |
350 |
| RS108y-2Y2Yv-20C1.4-S(H95) |
20 |
2.0 |
20.0 |
470 |
| RS108y-2Y2Yv-30C1.4-S(H95) |
30 |
2.2 |
24.0 |
670 |
| RS108y-2Y2Yv-50C1.4-S(H95) |
50 |
2.2 |
29.0 |
1050 |
| 1.8mm Conductor, 3.4mm Insulated Wire |
| RS108y-2Y2Yv-10C1.8-S(H95) |
10 |
2.0 |
19.0 |
400 |
| RS108y-2Y2Yv-14C1.8-S(H95) |
14 |
2.2 |
21.0 |
540 |
| RS108y-2Y2Yv-20C1.8-S(H95) |
20 |
2.2 |
24.0 |
730 |
| RS108y-2Y2Yv-30C1.8-S(H95) |
30 |
2.2 |
28.0 |
1050 |
| RS108y-2Y2Yv-50C1.8-S(H95) |
50 |
2.2 |
36.0 |
1700 |
