CCPSSP-R-FR0.1
Application
The cables are used as railway cables and can be installed directly into the ground or in ducts.
Reference Standards

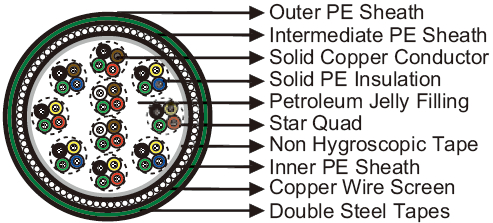

Cable Construction
| Conductors |
Soft annealed solid copper, 0.9 mm nominal diameter. |
| Insulation |
PE. |
| Cabling Element |
Four insulated conductors are twisted together to form a quad. |
| Stranding |
Quads are helically stranded in concentric layers. |
| Filling |
Petroleum jelly filling. |
| Core Wrapping |
At least one layer of water swellable material with overlapping. |
| Inner Sheath |
PE sheath. |
| Screen |
1.4/1.8mm copper wires wrapping with one plastic tape (protection against interference). |
| Intermediate Sheath |
PE sheath. |
| Armour |
Two layers of steel tape (0.8mm thick). |
| Outer Sheath |
PE sheath. |
Electrical Characteristics at 20℃
| Nominal Conductor Diameter |
mm |
0.9 |
| Maximum Conductor Resistance |
Ω/km |
28.5 |
| Minimum Insulation Resistance @500 V DC |
MΩ.km |
25000 |
| Mutual Capacitance @800Hz |
nF/km |
41 |
| Capacitance Unbalance @800Hz |
|
|
| K1 maximum individual value |
pF/460m |
250 |
| K9-12 maximum individual value |
pF/460m |
250 |
| ea1/2 maximum individual value |
pF/460m |
1200 |
| Attenuation |
|
|
| @1KHz |
dB/km |
0.7 |
| @10KHz |
dB/km |
1.6 |
| @30KHz |
dB/km |
2.1 |
| Test Voltage @50Hz 1min |
|
|
| Core to Core |
Veff |
2100 |
| Core to Screen |
Veff |
2500 |
| Core to Armouring |
Veff |
2000 |
| Reduction Factor @100V/km 50Hz |
|
0.1 |
Mechanical and Thermal Properties
- Minimum Bending Radius: 10×OD
- Temperature Range: -30℃ to +70℃ (during operation); -5℃ to +50℃ (during installation)
Dimensions and Weight
| Cable Code |
Number of Quads |
Nominal Sheath Thickness |
Maximum Overall Diameter |
Nominal Weight |
| Inner |
Inter. |
Outer |
| |
|
mm |
mm |
mm |
mm |
kg/km |
| 0.9mm Conductor, 1.8mm Insulated Wire |
| RS/CCPSSP-R-FR0.1-2Y(F)2YD2YB2Y-1Q0.9 |
1 |
1.5 |
1.5 |
1.6 |
23.7 |
1300 |
| RS/CCPSSP-R-FR0.1-2Y(F)2YD2YB2Y-3Q0.9 |
3 |
1.5 |
1.5 |
1.6 |
27.7 |
1648 |
| RS/CCPSSP-R-FR0.1-2Y(F)2YD2YB2Y-5Q0.9 |
5 |
1.5 |
1.5 |
1.6 |
31.5 |
1984 |
| RS/CCPSSP-R-FR0.1-2Y(F)2YD2YB2Y-25Q0.9 |
25 |
1.7 |
1.7 |
1.8 |
51.3 |
4166 |
