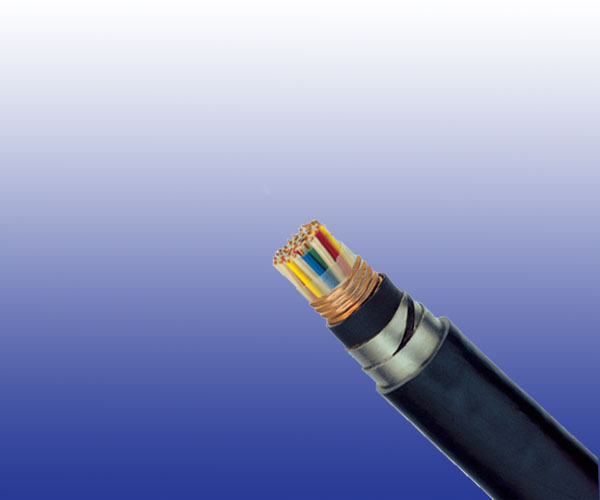

CCTSST-FR0.3 n×4×1.4
Application
The cables are used as railway cables and can be installed directly into the ground or in ducts.
Reference Standards

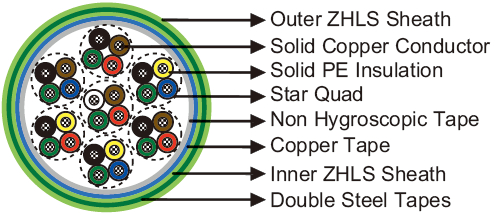

Cable Construction
| Conductors |
Soft annealed solid copper, 1.4 mm nominal diameter. |
| Insulation |
PE. |
| Cabling Element |
Four insulated conductors are twisted together to form a quad. |
| Stranding |
Quads are helically stranded in concentric layers. |
| Core Wrapping |
Two or more layers of plastic tape(s) with overlapping. |
| Screen |
Copper tapes with overlap (protection against interference). |
| Inner Sheath |
LSZH sheath, coloured green. |
| Armour |
Two layers of steel tape (0.8mm thick). |
| Outer Sheath |
LSZH sheath, coloured green. |
Electrical Characteristics at 20℃
| Nominal Conductor Diameter |
mm |
1.4 |
| Maximum Conductor Resistance |
Ω/km |
11.7 |
| Minimum Insulation Resistance @500 V DC |
MΩ.km |
35000 |
| Mutual Capacitance @800Hz |
nF/km |
45 |
| Capacitance Unbalance @800Hz |
|
|
| K1 maximum individual value |
pF/460m |
250 |
| K9-12 maximum individual value |
pF/460m |
250 |
| ea1/2 maximum individual value |
pF/460m |
1200 |
| Test Voltage @50Hz 1min |
|
|
| Core to Core |
Veff |
2100 |
| Core to Screen |
Veff |
2500 |
| Reduction Factor @100V/km 50Hz |
|
0.3 |
Mechanical and Thermal Properties
- Minimum Bending Radius: 10×OD
- Temperature Range: -40℃ to +60℃ (during operation); -10℃ to +60℃ (during installation)
Dimensions and Weight
| Cable Code |
Number of Quads |
Nominal Sheath Thickness |
Maximum Overall Diameter |
Nominal Weight |
| Inner |
Outer |
| |
|
mm |
mm |
mm |
kg/km |
| 1.4mm Conductor, 2.6mm Insulated Wire |
| RS/CCTSST-FR0.3-2Y(K)HBH-1Q1.4 |
1 |
1.5 |
1.6 |
19.0 |
880 |
| RS/CCTSST-FR0.3-2Y(K)HBH-3Q1.4 |
3 |
1.5 |
1.6 |
27.1 |
1440 |
| RS/CCTSST-FR0.3-2Y(K)HBH-5Q1.4 |
5 |
1.5 |
1.6 |
31.0 |
1826 |
| RS/CCTSST-FR0.3-2Y(K)HBH-7Q1.4 |
7 |
1.5 |
1.6 |
33.1 |
2090 |
| RS/CCTSST-FR0.3-2Y(K)HBH-10Q1.4 |
10 |
1.7 |
1.8 |
38.4 |
2640 |
| RS/CCTSST-FR0.3-2Y(K)HBH-14Q1.4 |
14 |
1.7 |
1.8 |
42.2 |
3168 |
| RS/CCTSST-FR0.3-2Y(K)HBH-19Q1.4 |
19 |
1.8 |
2.0 |
47.2 |
3861 |
