EAPSP n×1×1.4

Application

The cables are used as railway cables and can be installed directly into the ground or in ducts.

Standard

  • RENFE E.T. 03.365.051.6

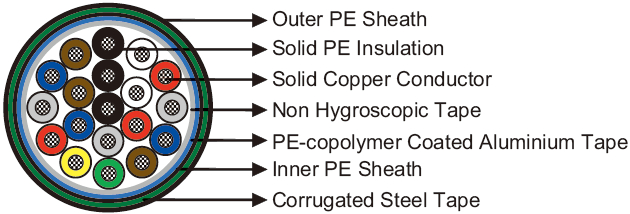

Cable Construction

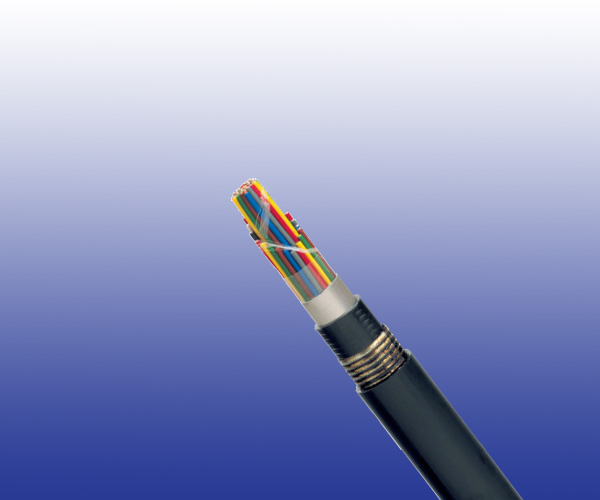

EAPSP n×1×1.4 Railway Cable
Conductors Soft annealed solid copper, 1.4 mm nominal diameter.
Insulation PE insulation.
Stranding Cores are helically stranded in concentric layers.
Core Wrapping Plastic tape(s) with overlapping.
Moisture Barrier One laminated sheath made of aluminium tape (0.2mm thick) coated with copolymer on at least one side is applied longitudinally with overlap.
Inner Sheath PE sheath.
Armour One corrugated steel tape is longitudinally applied with overlap.
Outer Sheath PE sheath.

Electrical Characteristics at 20℃

Nominal Conductor Diameter mm 1.4
Maximum Conductor Resistance Ω/km 11.7
Minimum Insulation Resistance @500 V DC MΩ.km 25000
Resistance Unbalance % 2
Test Voltage @50Hz 1min
Core to Core Veff 2100
Core to Screen Veff 2500
Core to Armouring Veff 2000

Mechanical and Thermal Properties

Minimum Bending Radius 10×OD
Temperature Range -30℃ to +70℃ (during operation); -10℃ +50℃ (during installation)

Dimensions and Weight

Cable Code Number of Cores Nominal Sheath Thickness Maximum Overall Diameter Nominal Weight
Inner Outer
mm mm mm kg/km
1.4mm Conductor, 2.6mm Insulated Wire
RS/EAPSP-2Y(L)2Y(SR)2Y-4C1.4 4 1.3 1.4 15.7 270
RS/EAPSP-2Y(L)2Y(SR)2Y-7C1.4 7 1.3 1.4 17.1 350
RS/EAPSP-2Y(L)2Y(SR)2Y-9C1.4 9 1.3 1.4 19.9 420
RS/EAPSP-2Y(L)2Y(SR)2Y-12C1.4 12 1.3 1.4 20.0 480
RS/EAPSP-2Y(L)2Y(SR)2Y-19C1.4 19 1.3 1.4 22.0 630
RS/EAPSP-2Y(L)2Y(SR)2Y-27C1.4 27 1.3 1.4 24.8 810
RS/EAPSP-2Y(L)2Y(SR)2Y-37C1.4 37 1.3 1.4 26.9 1010
RS/EAPSP-2Y(L)2Y(SR)2Y-48C1.4 48 1.3 1.4 29.7 1240
RS/EAPSP-2Y(L)2Y(SR)2Y-61C1.4 61 1.3 1.4 31.8 1490
